A superbly balanced mower range that's easy to manoeuvre

The Razor and Razor Ultra have been developed to specifically meet the demands of golf greens & tees, cricket pitches and bowling greens.

With an 11 bladed cutting cylinder giving an ultra fine finish, these machines incorporate many new key features. These include an ultra short wheelbase for undulating greens, a tungsten tipped groomer (Razor Ultra) which can be in or out dependant on the conditions, to cut lateral grasses prior to cutting, the simple ‘no tools required’ click height adjuster and the low noise, low vibration Honda Q9 engine.

Enquire

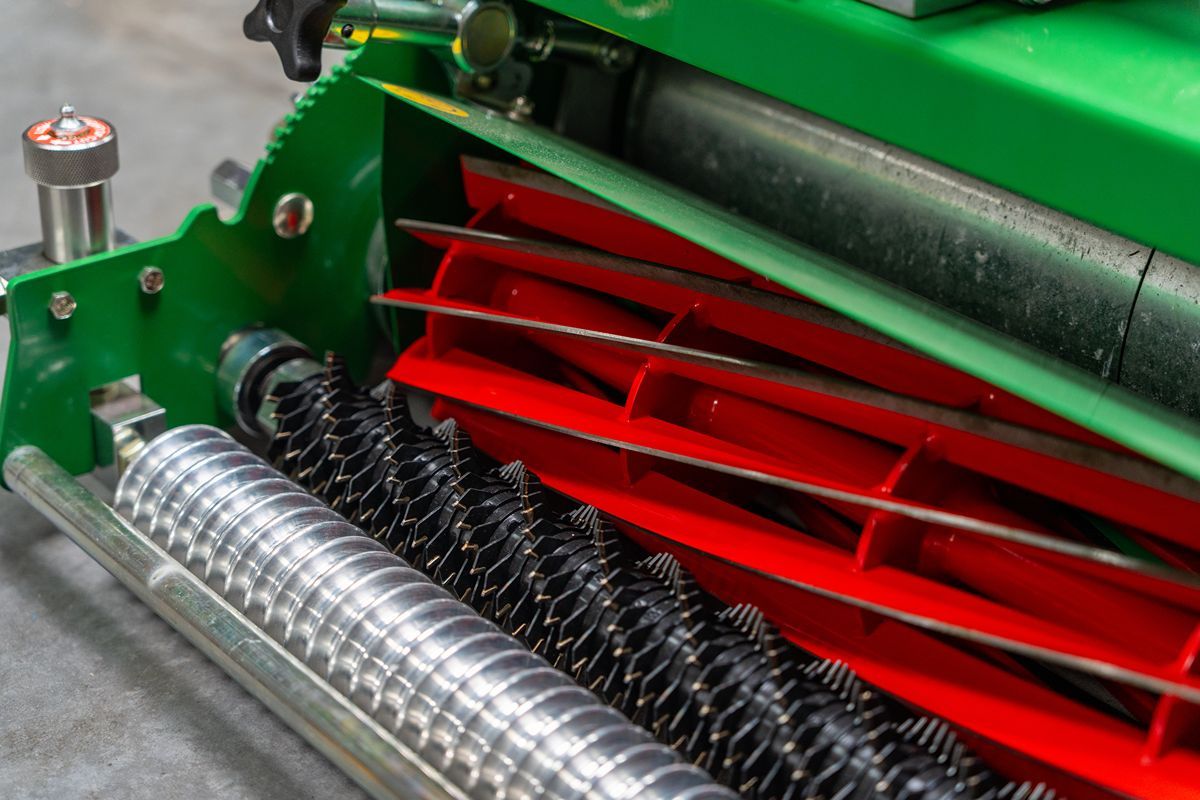

11 bladed British made cylinder, relief ground for quality cut and long inter grind intervals
Heavy duty independent cutter and roller clutches for smooth take up
Powerful tungsten tipped groomer for lateral growth control on the Razor Ultra
Ultra short wheelbase for undulating greens
Simple and positive height of cut adjustment of 0.25mm with ‘click adjust’

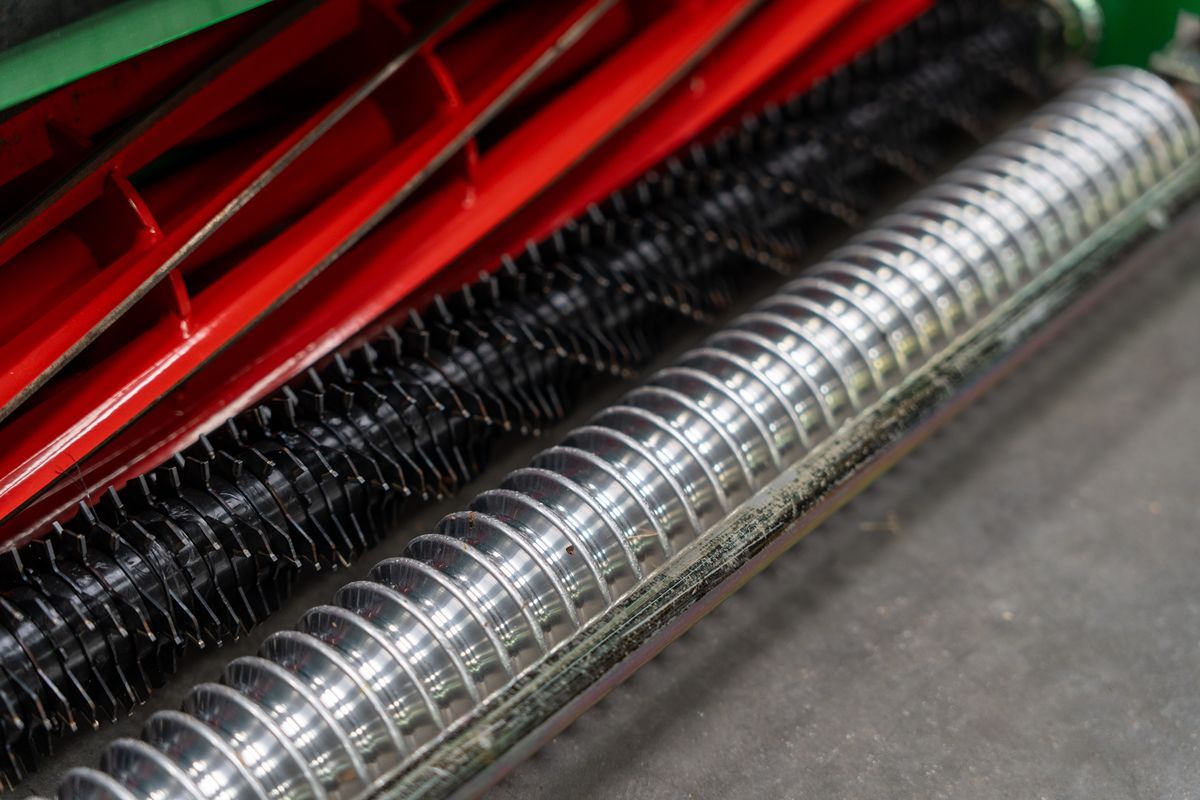

Weile roller as standard for that perfect cut

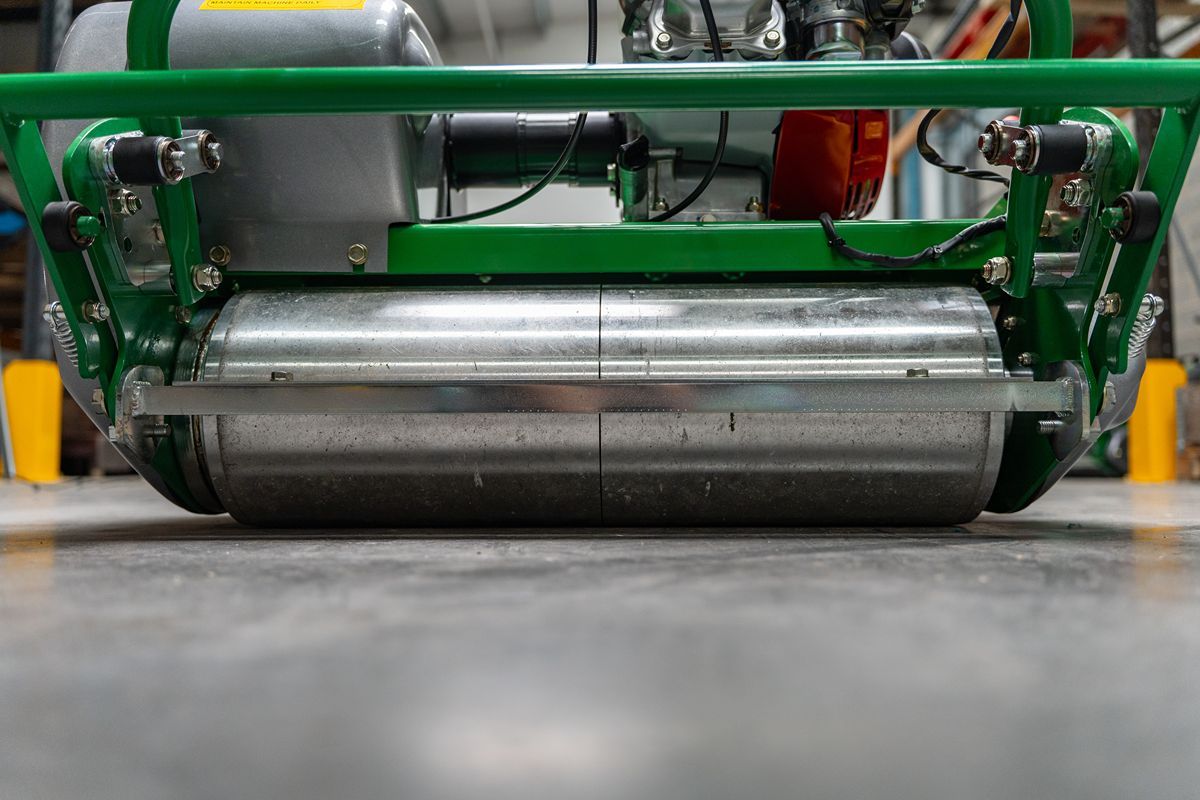

2 section cast aluminium rear roller with steel geared differential
High impact resistant acrylic guards
No more stub axles – quick release transport wheel kit c/w kick stand
Easy ‘pull back’ for accurate alignment of next run

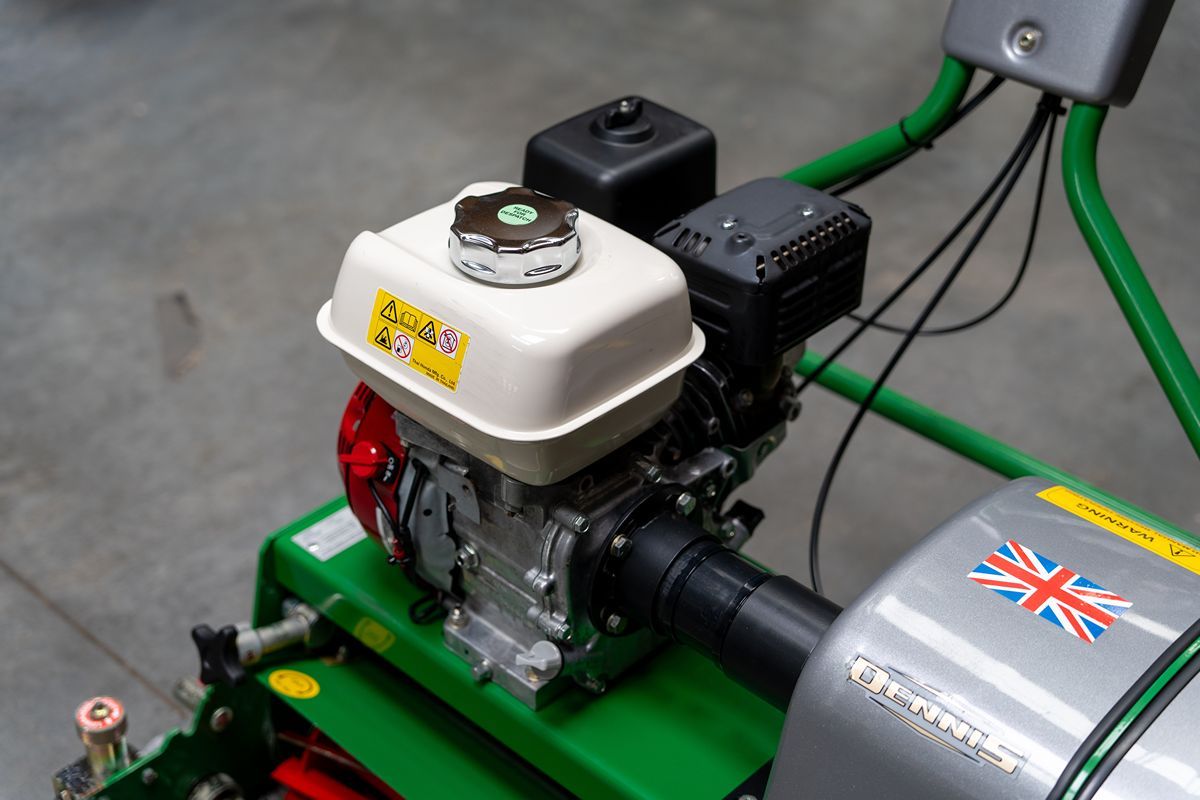

Honda power – ultimate easy start long life engine with Q9 low noise, low vibration technology

Honda power – ultimate easy start long life engine with Q9 low noise, low vibration technology
11 bladed British made cylinder, relief ground for quality cut and long inter grind intervals
Weile roller as standard for that perfect cut
2 section cast aluminium rear roller with steel geared differential
Easy to use parking brake

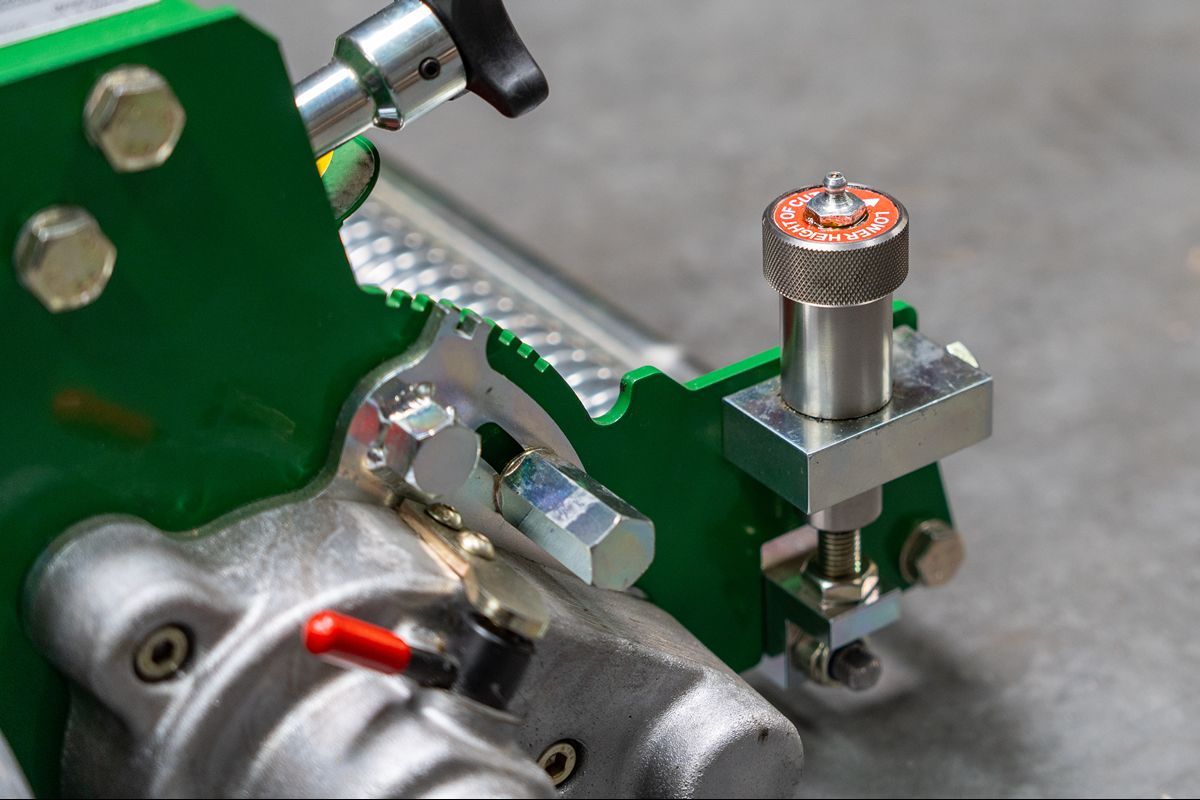

Simple and positive height of cut adjustment with ‘click adjust’
Easy to use handlebars with a choice of two styles for operator comfort

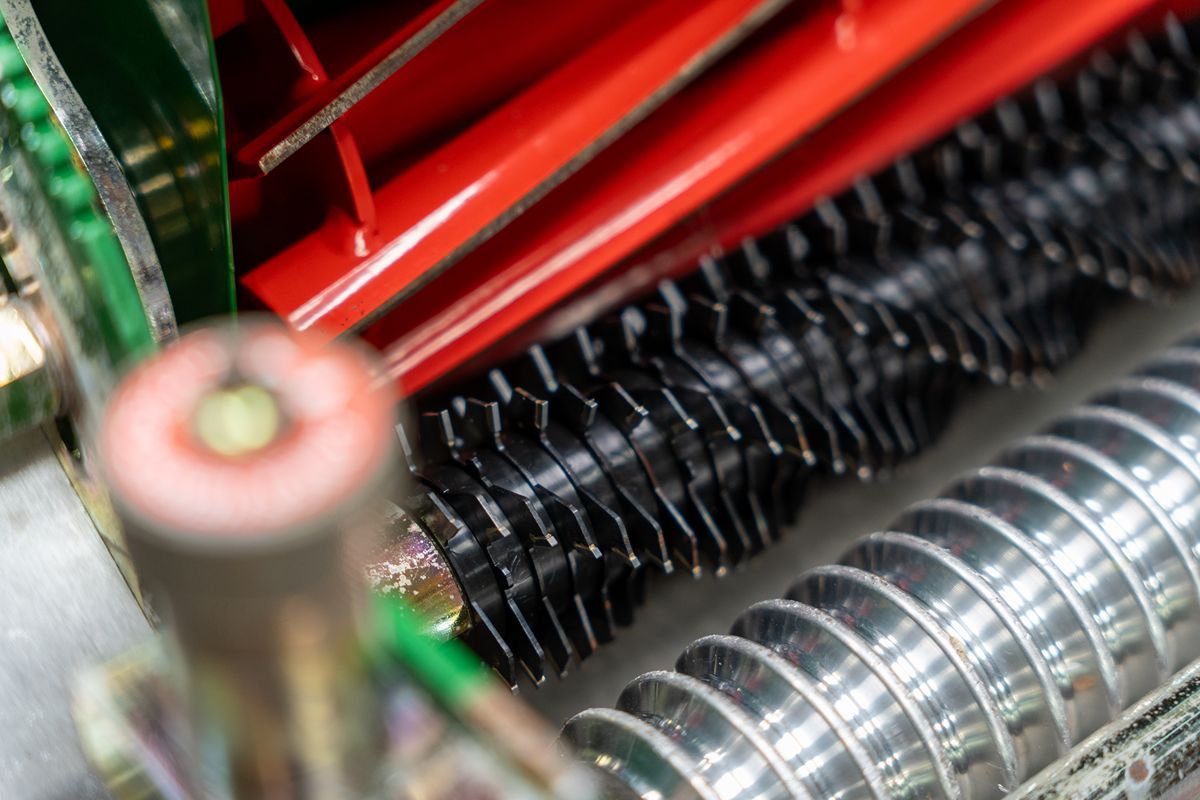

Razor Ultra tungsten tipped groomer for lateral growth control

Specification

Razor & Razor Ultra

Specification	Razor	Razor Ultra
Cutting width	560 mm / 22 inches	560 mm / 22 inches
Height of cut	3 mm - 15 mm	3 mm - 15 mm
Number of blades	Choice of 7 or 11	11
Cylinder diameter	135 mm	135 mm
Grassbox volume	75 L	75 L
Front roller diameter	63.5 mm	63.5 mm
Rear roller diameter	203 mm	203 mm
Weight	Machine 130 kg Grassbox 3.8 kg	Machine 130 kg Grassbox 3.8 kg
Width	825 mm	825 mm
Length	1060 mm	1060 mm
Height	1050 mm	1050 mm
Speed	Forward 3.13 km/h	Forward 3.13 km/h
Drive system	4' V Belt Friction clutch	4' V Belt Friction clutch
Petrol engine	Honda GX 120	Honda GX 120
Power	2.4 kW (3.1 HP)	2.4 kW (3.1 HP)
Tungsten tipped groomer	No	Yes - The Razor Ultra has a tungsten-tipped groomer reel can be engaged or disengaged depending on turf conditions for lifting lateral growth ahead of cutting.
Variations	Dedicated mower with, wheel kit and kick stand T-bar handle D139T-1 Loop handle D139-1 Dedicated mower T-bar handle D139T Loop handle D139	Dedicated mower with tungsten tipped groomer, wheel kit and kick stand T-bar handle D140T-1 Loop handle D140-1 Dedicated mower with tungsten tipped groomer T-bar handle D140T Loop handle D140

Powered transport wheels
Powered transport wheels for fast transit between greens.
Smooth Roller
Smooth roller in lieu of standard
D140SR
Scraper bar kit (to fit on weile or smooth roller)
800529
Loop Handle
Wycliffe Bowling Club Relies on Dennis FT and Razor for Consistent Greenkeeping Performance
For more than 70 years, Wycliffe Bowling Club has been at the heart of its local community. Established in 1956 as part of a foundry, the club has evolved over the decades, moving twice before settling at its current site in 1992.

Since then, the facility and its playing surface have continued to develop, supported by a dedicated team of volunteers who take great pride in maintaining the bowling green.

One of those volunteers is Adam Orr, a member of the club’s greenkeeping team whose responsibilities focus on the technical aspects of turf maintenance, including operating and maintaining the machinery.
View Article
Breaking Barriers on the Green: Sue Allen is Helping Shape the Future of Greenkeeping at Harperbury Bowls Club
Perfect bowling greens don't happen by accident. They are the result of careful planning, expert maintenance and countless hours of dedication behind the scenes. At Harperbury Bowls Club, that responsibility lies with Green Team Lead Sue Allen, one of the relatively few women leading greenkeeping operations in the bowls industry.
View Article

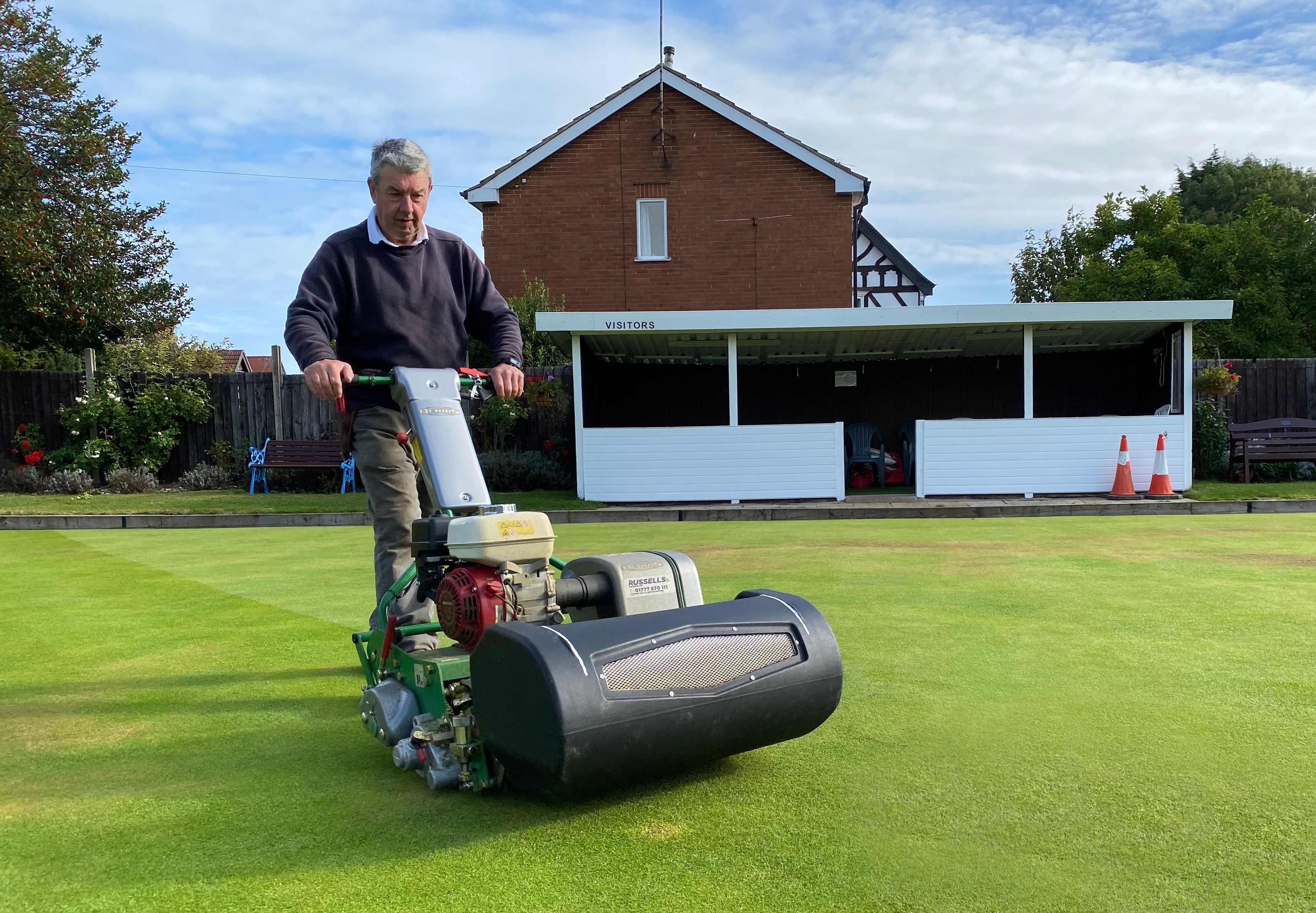

Blaby Bowling Club Raises the Standard of Greenkeeping with the Dennis Razor Ultra 560
Blaby Bowling Club has built a reputation for providing one of the finest bowling surfaces in the region, thanks to a combination of dedicated volunteers, meticulous greenkeeping and investment in high-quality British-built machinery.
View Article

Simple in operation and easy to manoeuvre

The machine has a 560mm (22”) cutting width and incorporates many key features, 11 bladed cutting cylinder, ultra short wheelbase for undulating greens, tungsten tipped groomer, click height adjusters and stub free transport wheels.

11 bladed British made cylinder, relief ground for a quality cut

Heavy duty cutter and roller clutches for smooth take up

Simple and positive height of cut adjustment with ‘click adjust

Ultra short wheelbase for undulating greens

Powerful tungsten tipped groomer for lateral growth control on the Razor Ultra

High impact resistant acrylic guards

2 section cast aluminium rear roller with steel geared differential

No more stub axles – quick release transport wheel kit c/w kick stand

Honda power – ultimate easy start long life engine

Easy ‘pull back’ for accurate alignment of next run

Weile roller as standard for that perfect cut

Choice of two handle styles for optimal operator comfort

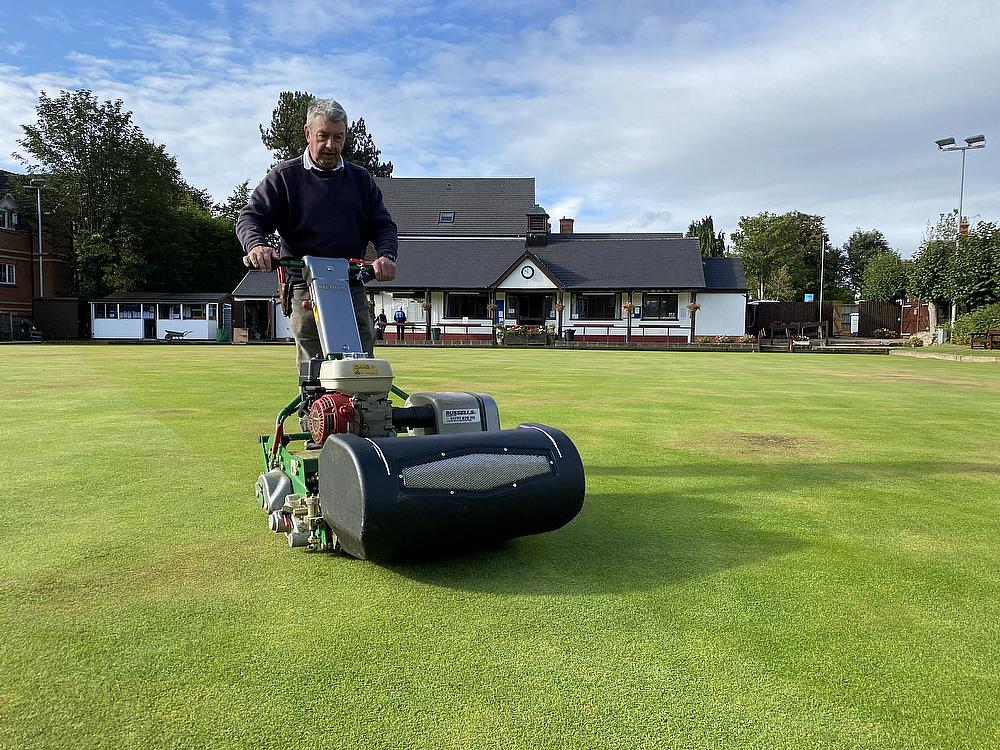

Razor Ultra 560

Testimonials

We're all absolutely delighted - it is a fabulous piece of kit and we use it three times a week during the season. It has helped get rid of a lot of horizontal growing grasses and the players have noticed a big improvement, the feedback is that the green is playing better than it has ever done before
Malcolm Holden
Committee Member - Rykneld Bowls Club
The groomer reel takes a lot of rubbish of the pitches such as creeping grasses and anything else that is lying down.

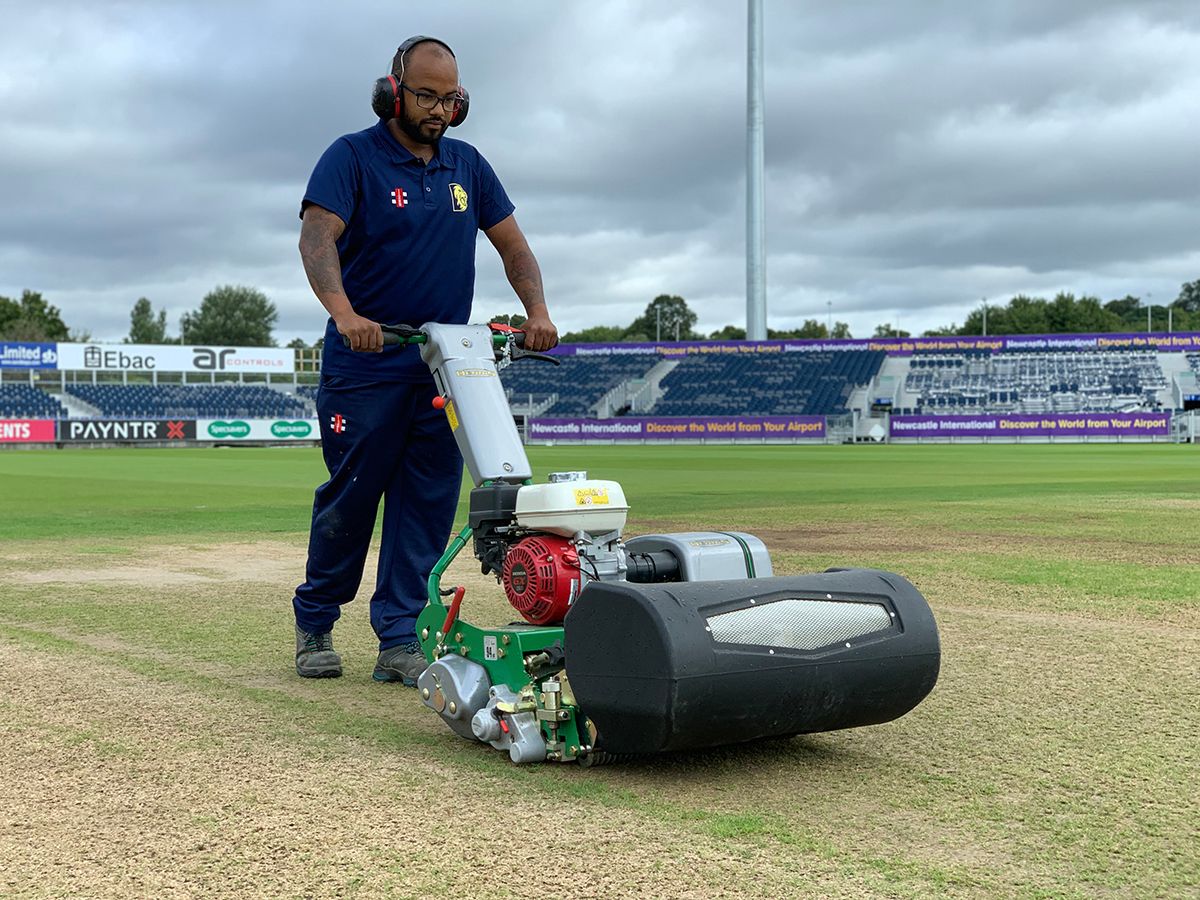

Vic Demain
Head Groundsman - Durham CCC

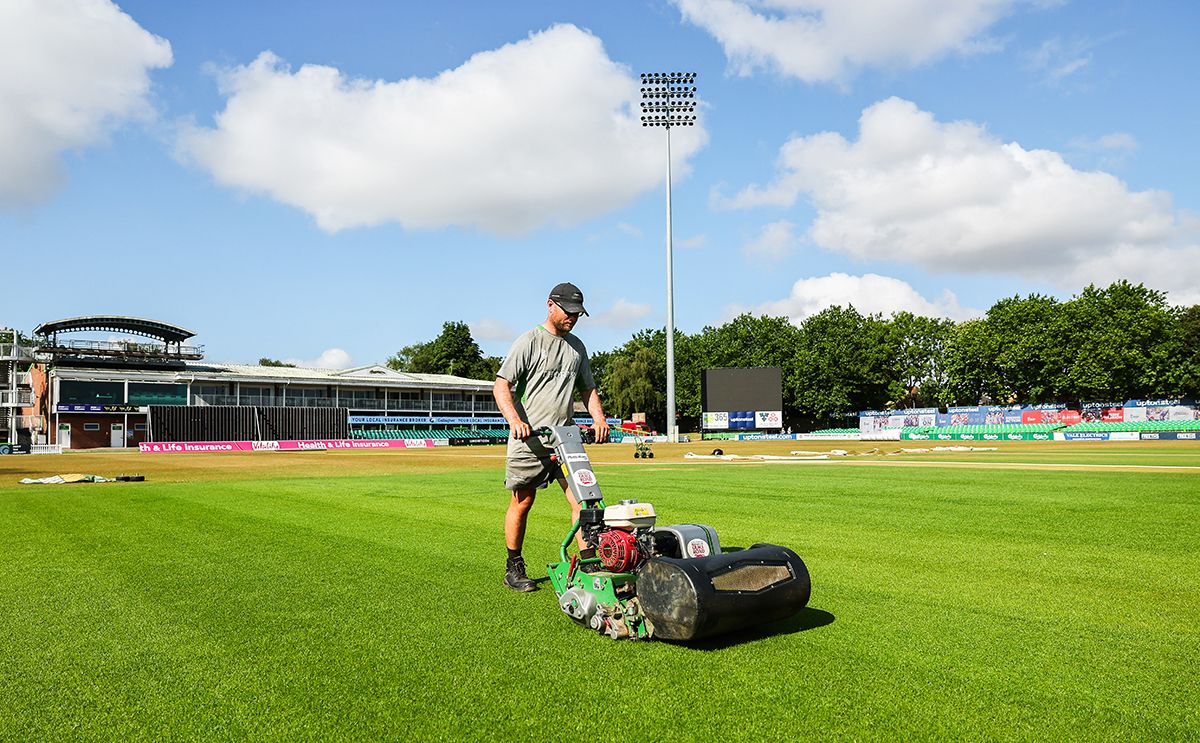

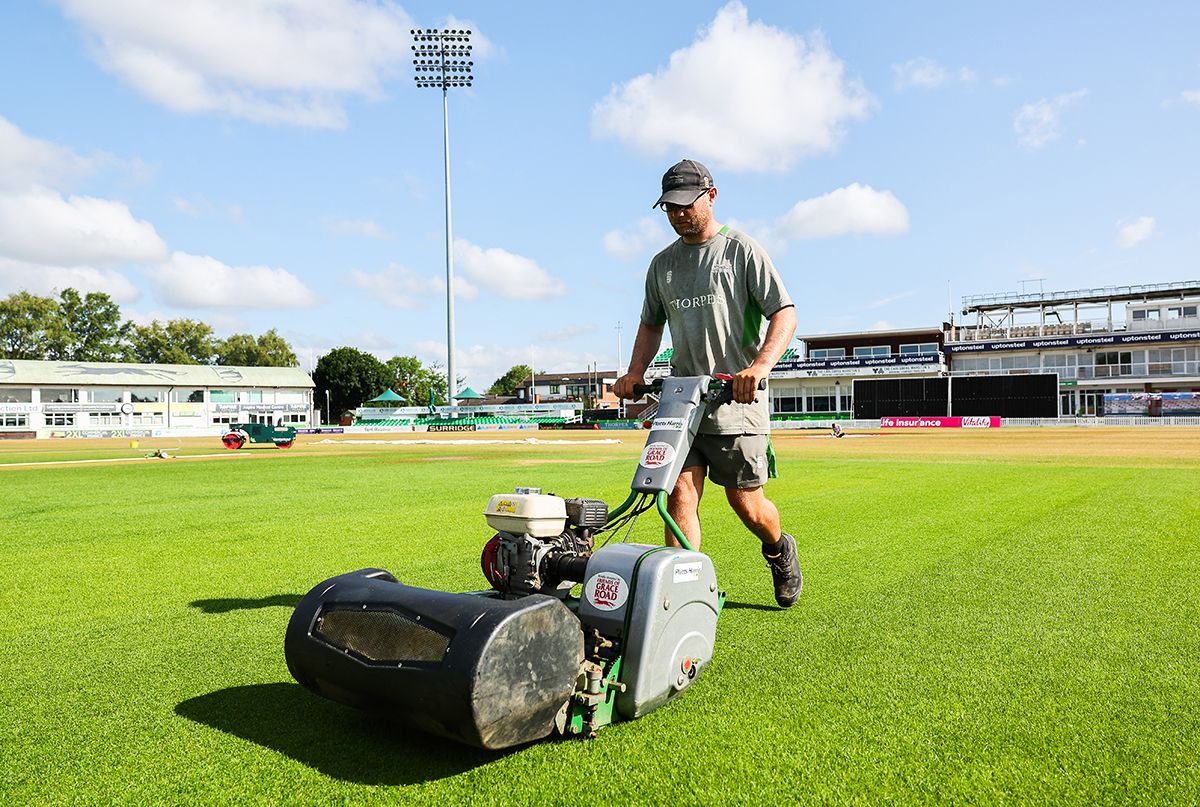

“We use the Dennis Razor Ultra for mowing the square and outdoor nets. It has the fitted groomer which is good for getting in between the grass and fetching out the thatch and dead matter which isn’t ideal for a cricket pitch. It also helps the lateral growth and stands it up for cutting. The quality of cut is perfect for what we need – it leaves a nice finish and cuts low enough to cut a cricket wicket down to a match day cut (3mm–15mm). We have the transport wheels for the Razor Ultra which help with getting the mower to where it needs to be. We’ve got a concrete path between the groundsman’s shed and the outfield and we don’t want to damage the rear roller over time''
Callum Lewin
Head Groundsman Leicestershire County Cricket Club
"The Dennis Razor Ultra 560 has been an excellent investment for our club. It's incredibly accurate, easy to operate and the height adjustment is so precise that maintaining a consistent playing surface is straightforward. The groomer gives a superb finish, helping us produce a true, smooth green that our members and visiting teams regularly compliment. It's been ultra-reliable, and I'd certainly recommend it to any bowling club looking to raise the standard of its green."
Brian Hawkins
Greenkeeper, Blaby Bowling Club
“We wanted a dedicated straight cutting mower, so choosing another Dennis machine was an easy decision. The Razor is used three times every week throughout the summer and during the bowling season.It’s slightly heavier than the FT510, but it’s still very manoeuvrable. It has the same excellent safety mechanisms, and it’s very easy to adjust the cutting height. If anyone is looking to purchase machinery for maintaining a bowling green, I don’t think Harperbury would look anywhere else. We’ll continue to use them and we’d certainly recommend anyone looking for reliable green maintenance equipment to take a serious look at Dennis.
Sue Allen
Greens Lead, Harperbury Bowls Club
