Battery Mowers

ES-510, ES-610

ES-510
  • Bowls
  • Croquet
  • Tennis
  • Cricket
  • Golf
  • Lawns
  • Local Authority

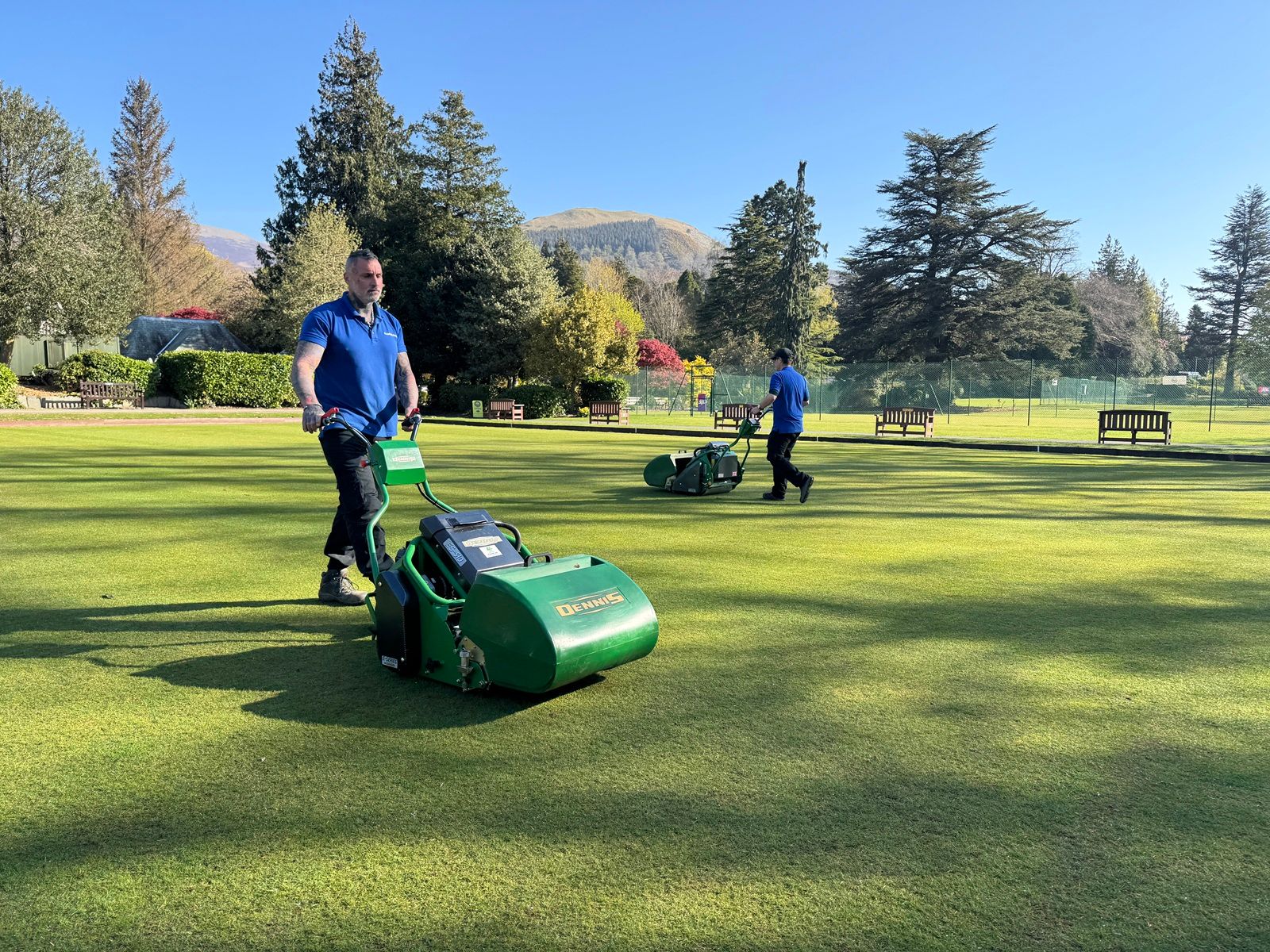

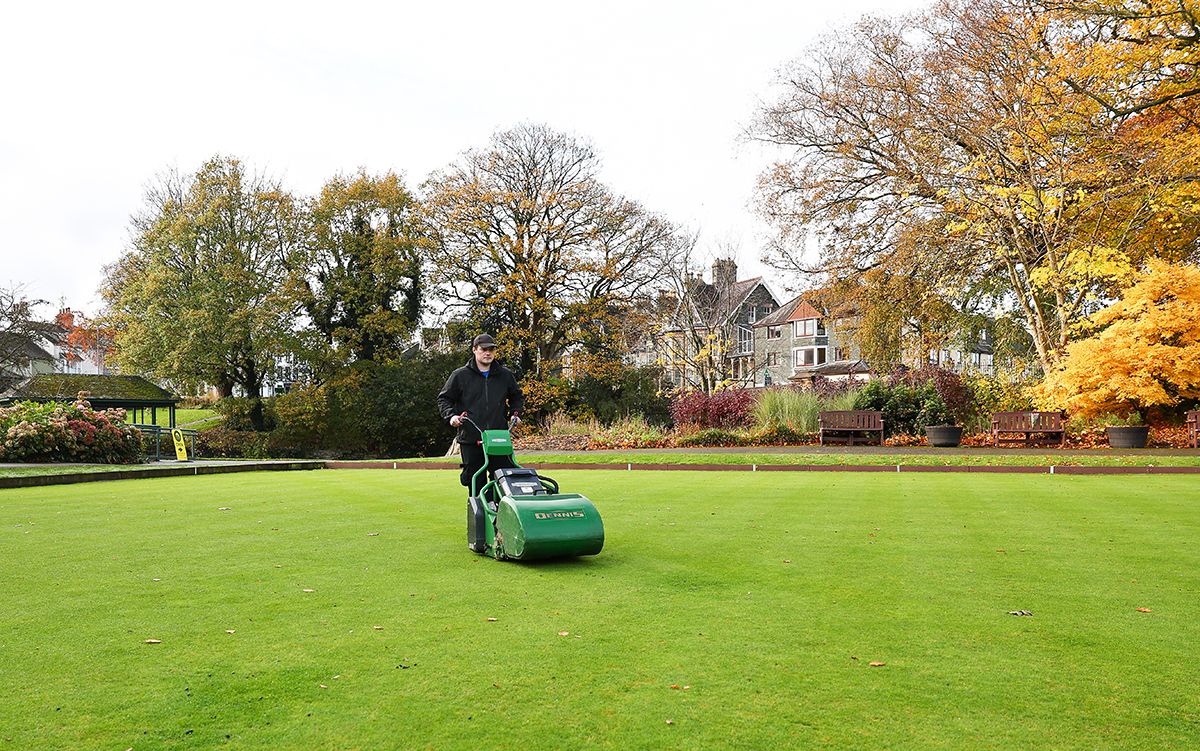

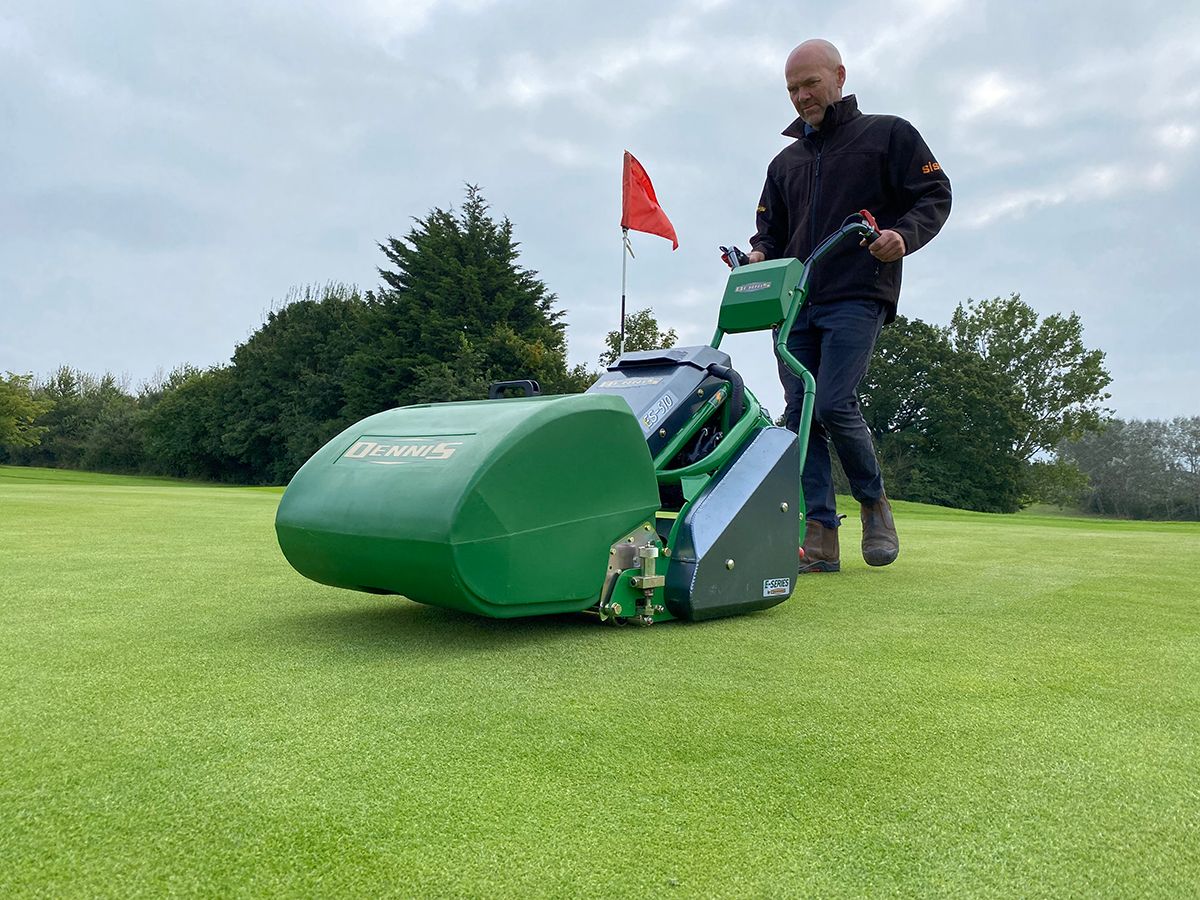

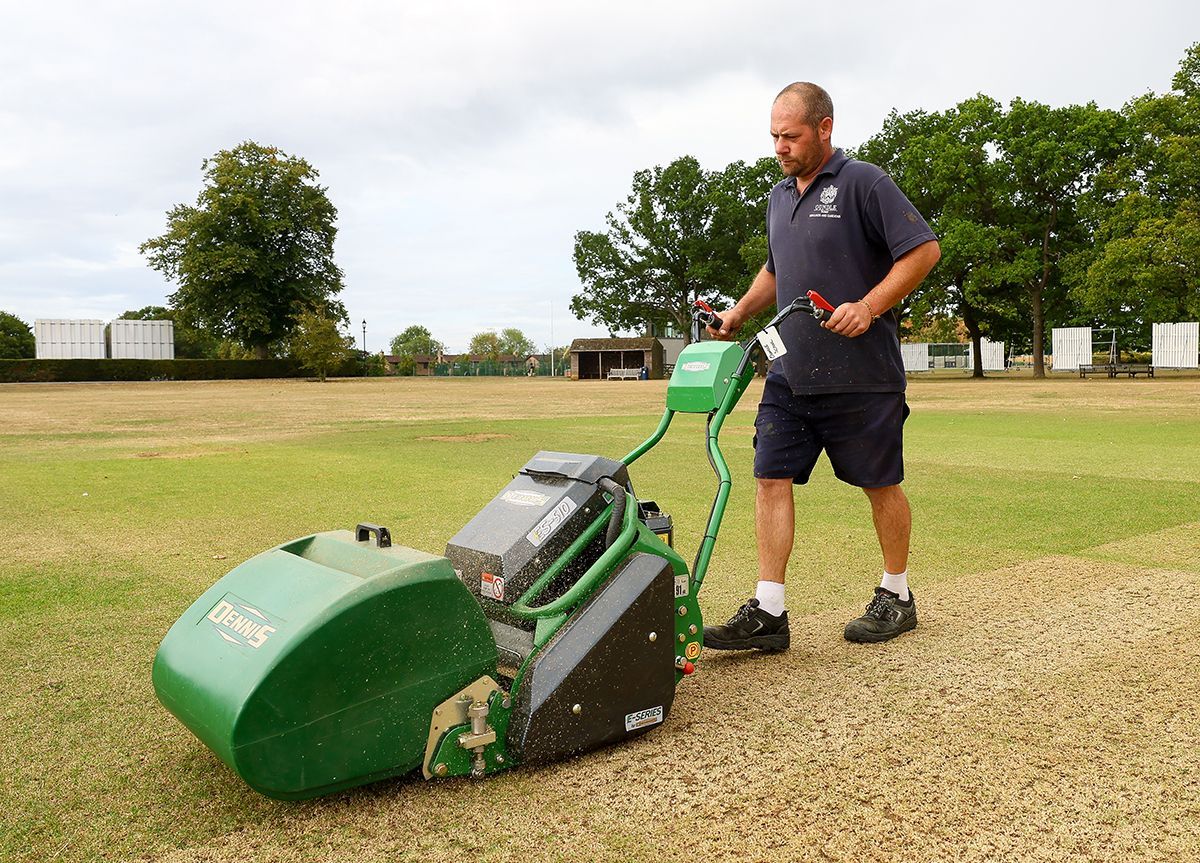

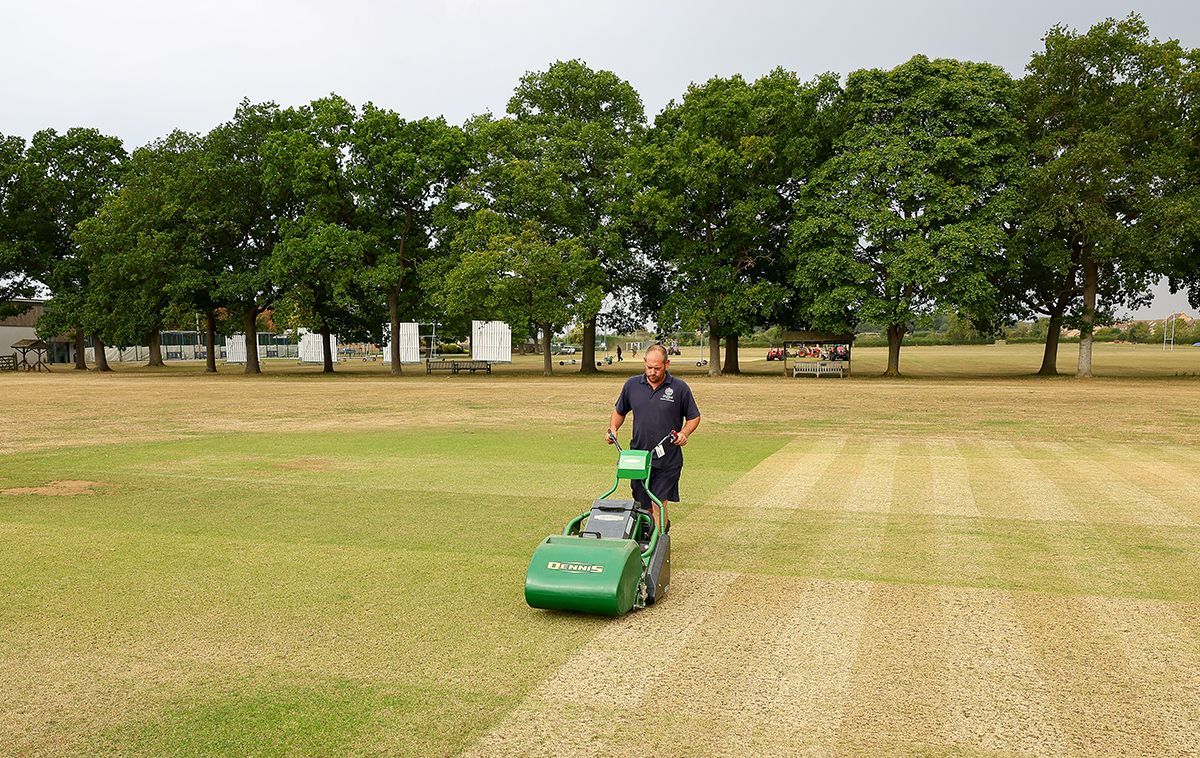

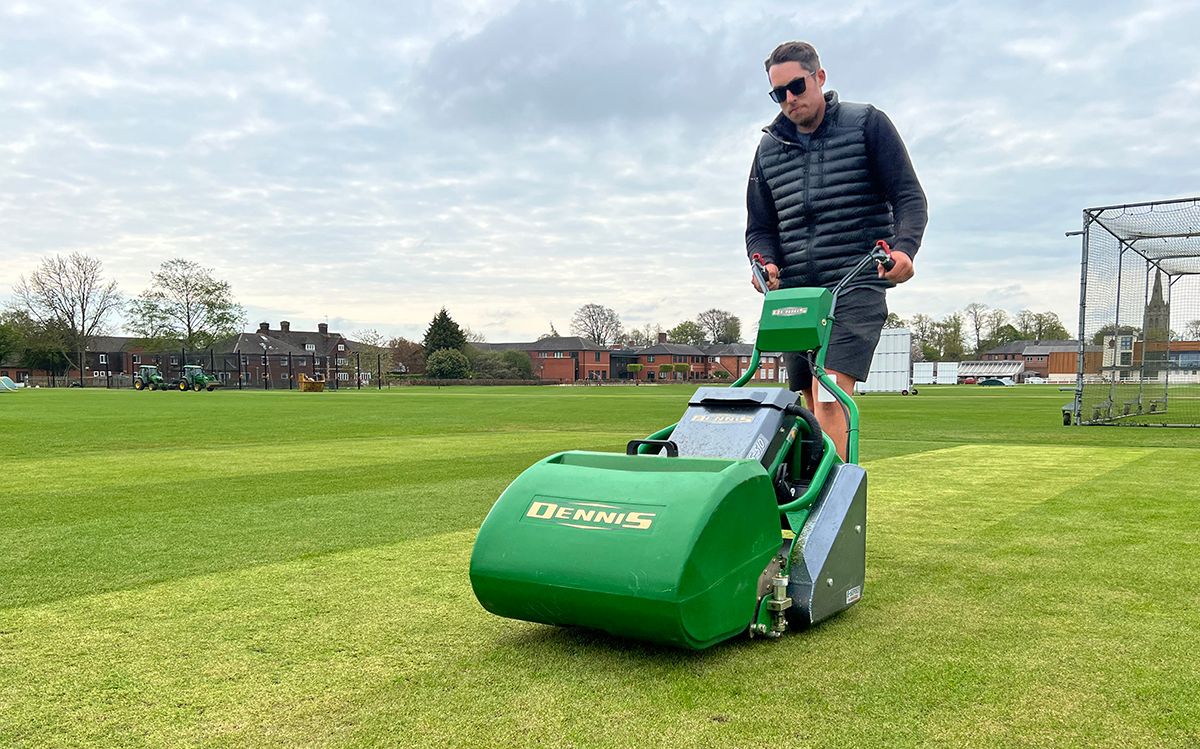

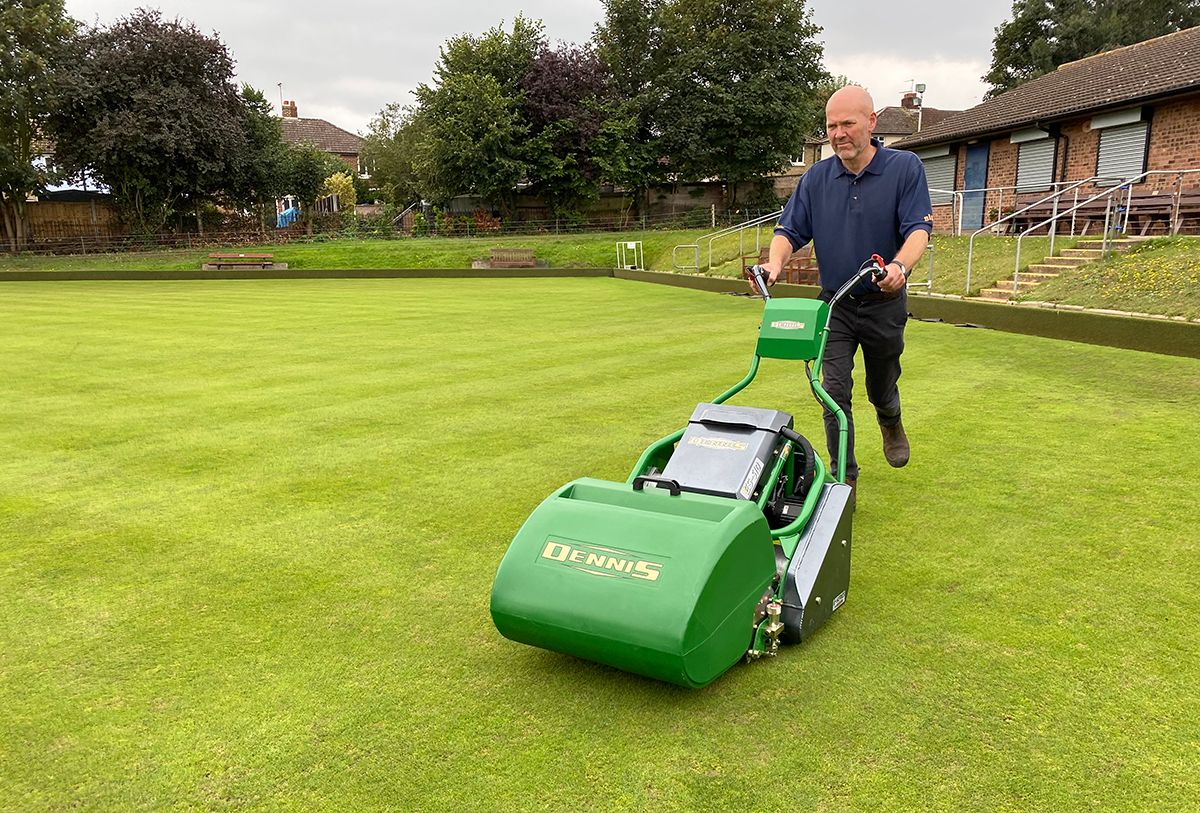

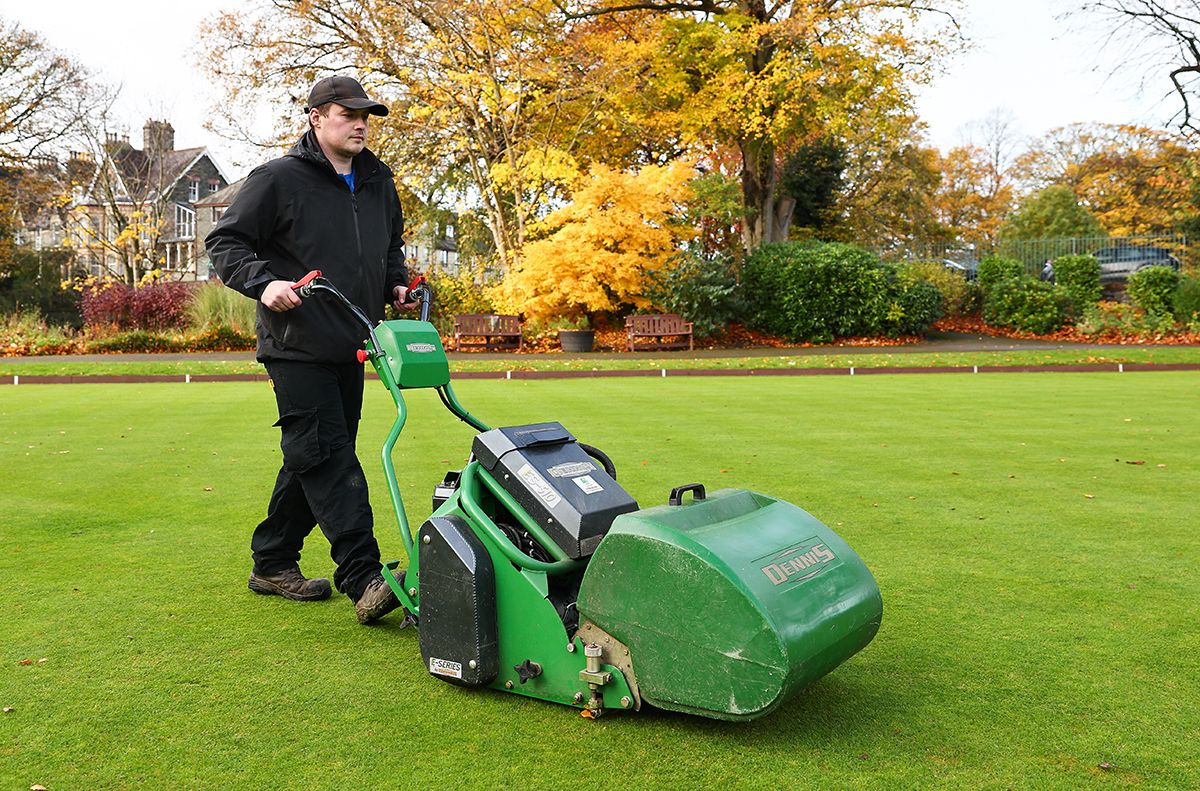

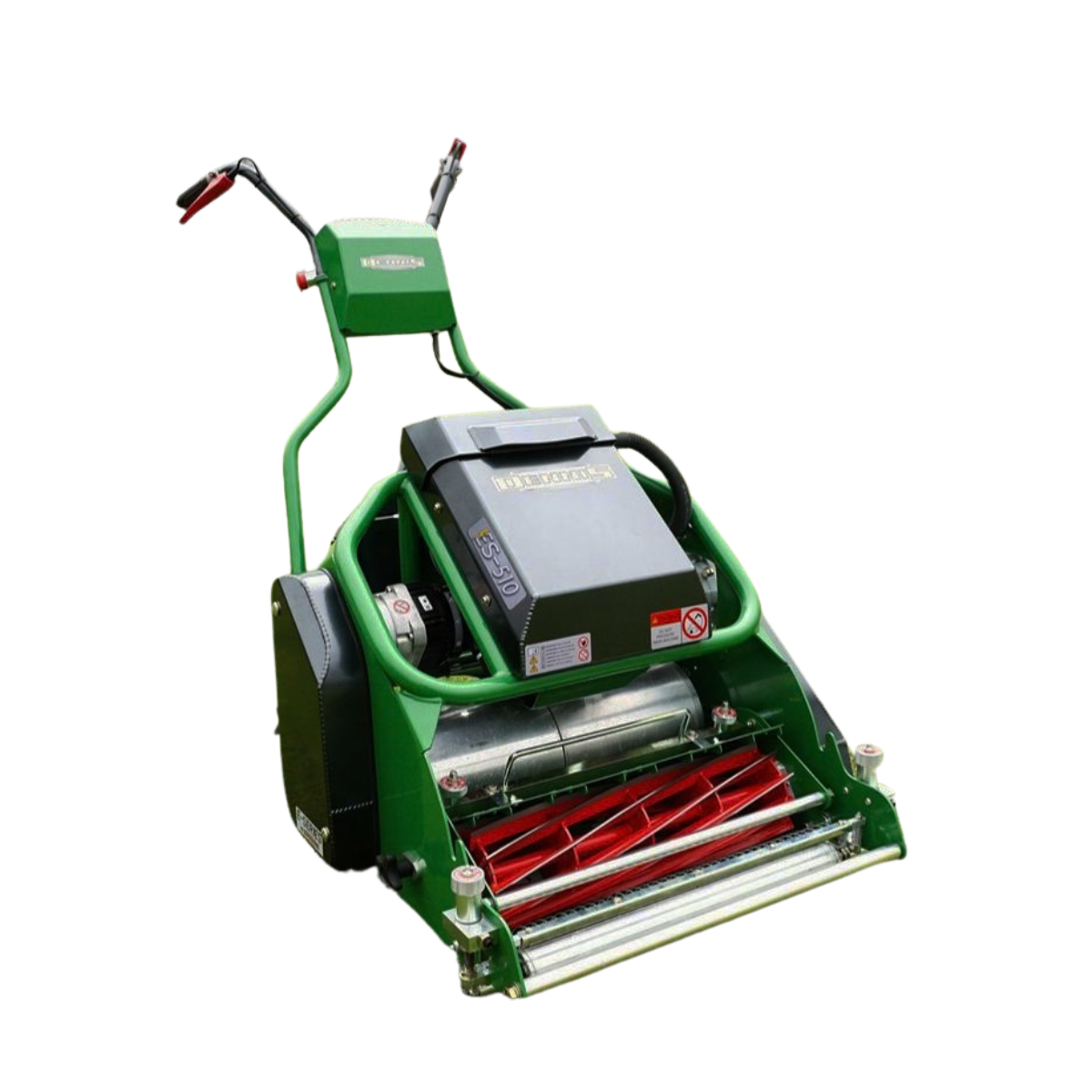

The ES-510 and ES-610 are 20” (510mm) and 24” (610mm) battery powered turf maintenance systems which utilise the same range of interchangeable cassettes as the Dennis FT.

This allows existing FT customers to change from petrol to battery machines without the need to purchase additional cassettes.

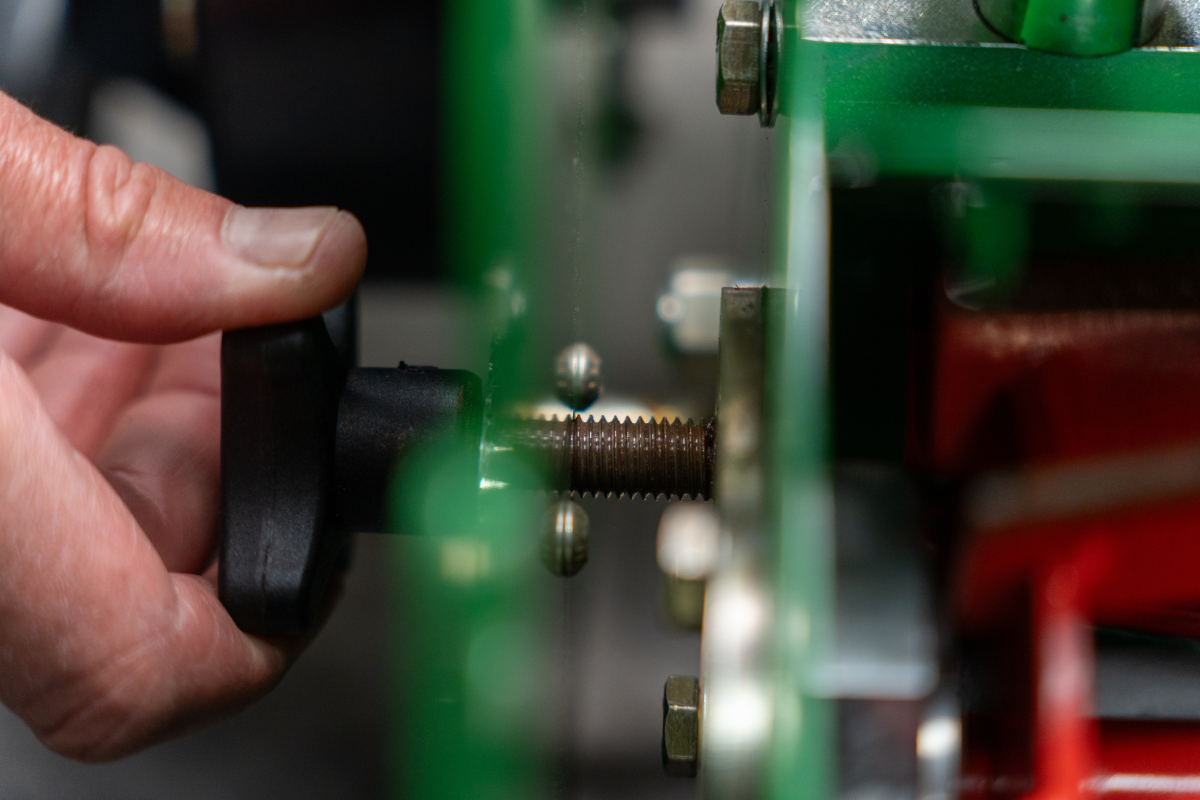

  • Simple ‘without tools’ click height adjustment in 0.25mm increments
  • Ultra slow take up speed for smooth set off
  • Option to have powered transport wheels or transport carrier
  • Adjustable handlebars for operator comfort
  • 1.5KWh battery
  • Choice of 12 interchangeable cassettes
  • No range anxiety, capable of cutting 4-5 bowling greens or approx. 10km on a single charge
  • Capable of scarifying down to -10mm
  • Rapid 2-3 hour recharge (using 650 watt charger)
  • Easy screen control adjustment – charge, speed selection, reverse setting for easy lining up, blade speed according to conditions, distance covered etc
  • Ultra low HAV’s and noise allows for full day usage in any environment
  • Back lapping as standard
  • 2 section smooth aluminium rear roller (standard).
  • Electric motors situated inside tubular framework for maximum protection
  • Choice of 2 adjustable handlebar styles for operator comfort
  • Maintained clips per metre at any forward speed - self adjusting cylinder RPM
  • ES-510 & ES-610 - Positive, easy height of cut adjustment in 0.25mm increments
  • ES-510 & ES-610 - Simple lever operated parking brake

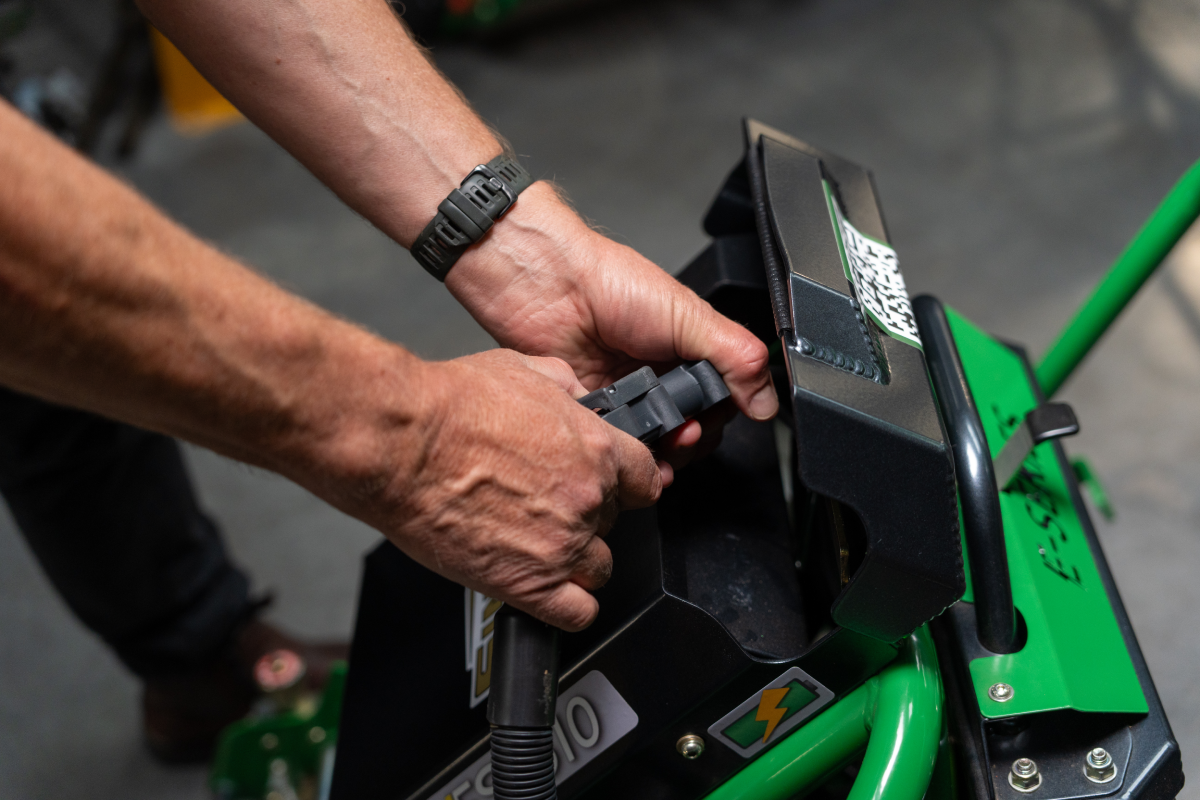

  • ES-510 & ES-610 - Easy connect disconnect battery to electrical system
  • ES-510 & ES-610 - Adjustable handlebars with key pad controls

Specification

ES-510, ES-610

  • SpecificationES-510ES-610
    Cutting Width

    510mm (20”)

    610mm (24”)

    Height of Cut

    3mm – 25mm

    3mm – 25mm

    Power Source/Output

    48V battery system

    48V battery system

  • ES-510 & ES-610 - Weile Roller

    Weile roller

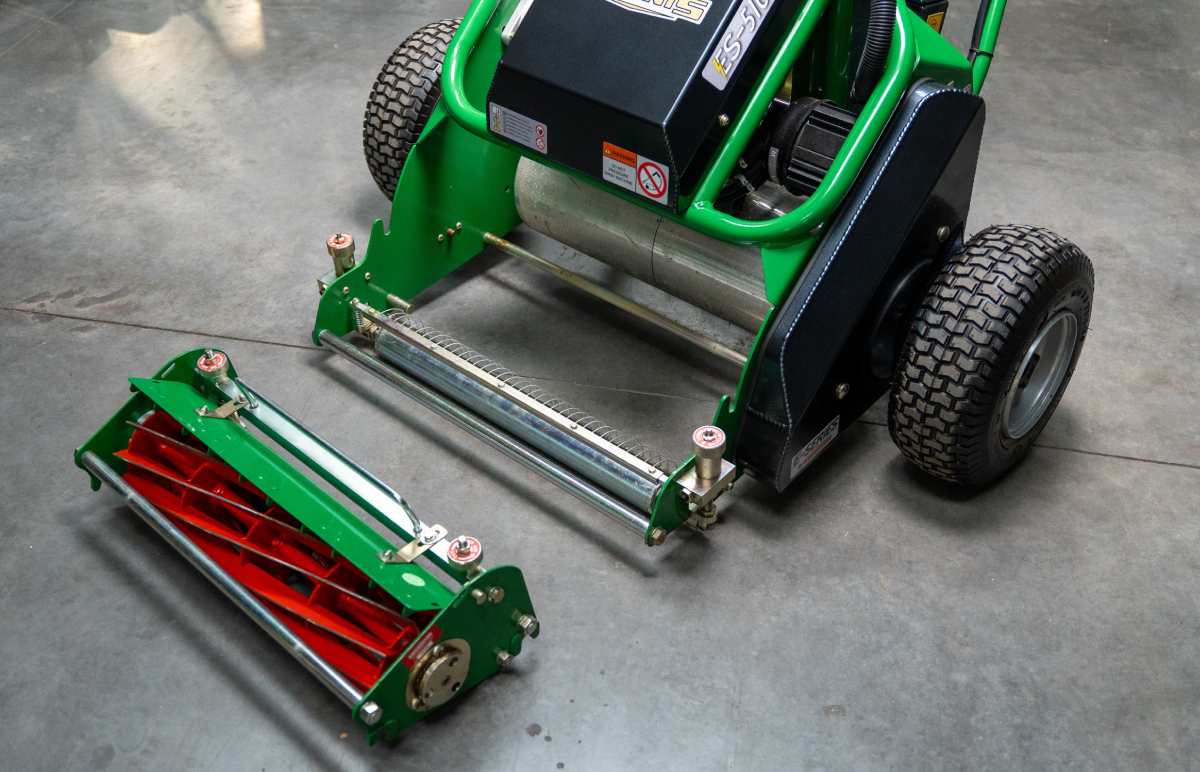

    Powered transport wheels

    ES-510 & ES-610 - Charger 650 watt

    Charger 650 Watt

    ES-510 & ES-610 - Aditional Battery pack

    Additional battery pack

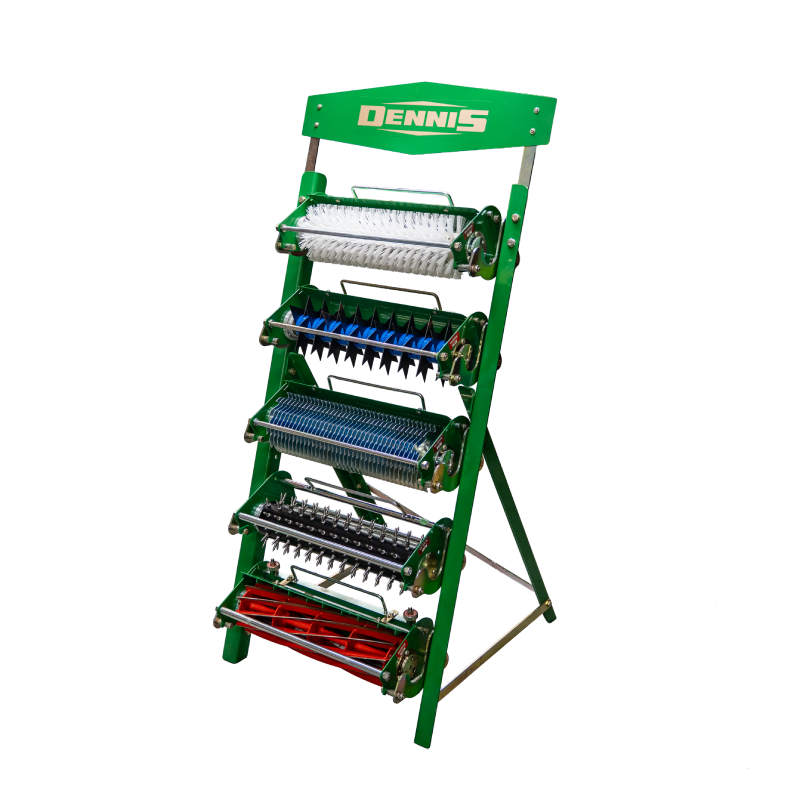

    Cassette Stand - 5

    Cassette Stand ES-510 and ES-610

    Number of cassettes 5
    20” D120
    24” D121

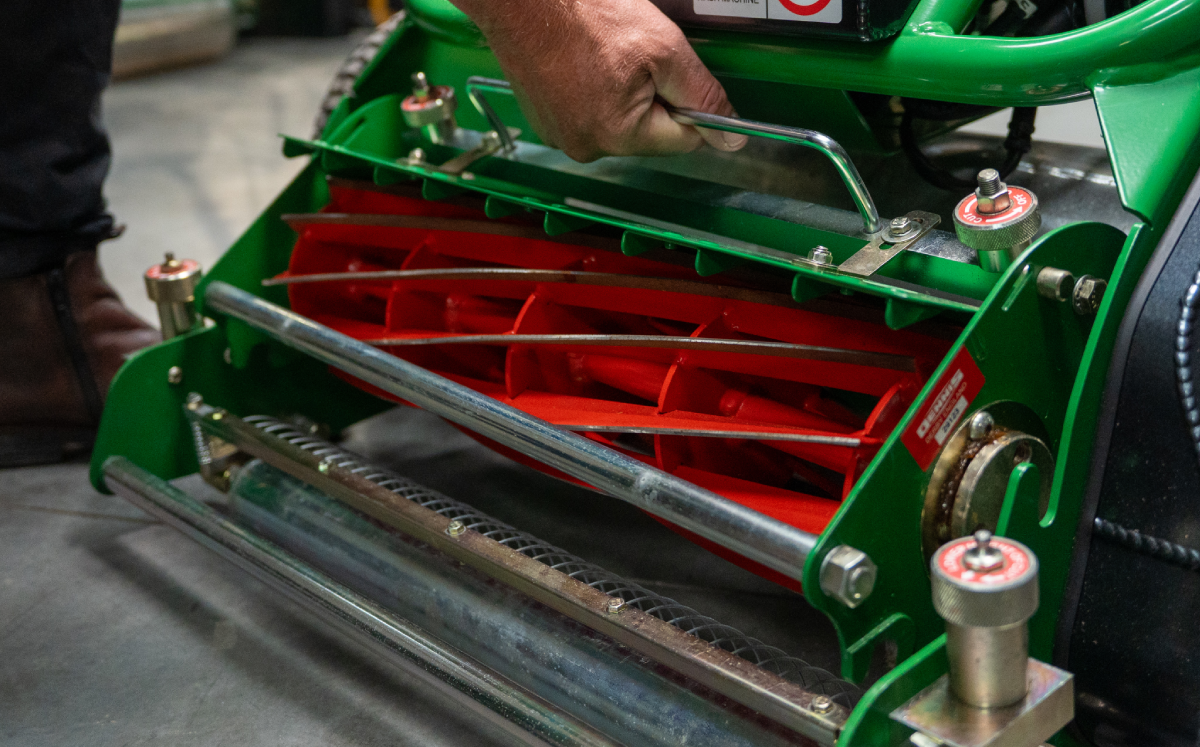

  • _ds32109 5 BLADED CYLINDER.jpg

    5 bladed cylinder

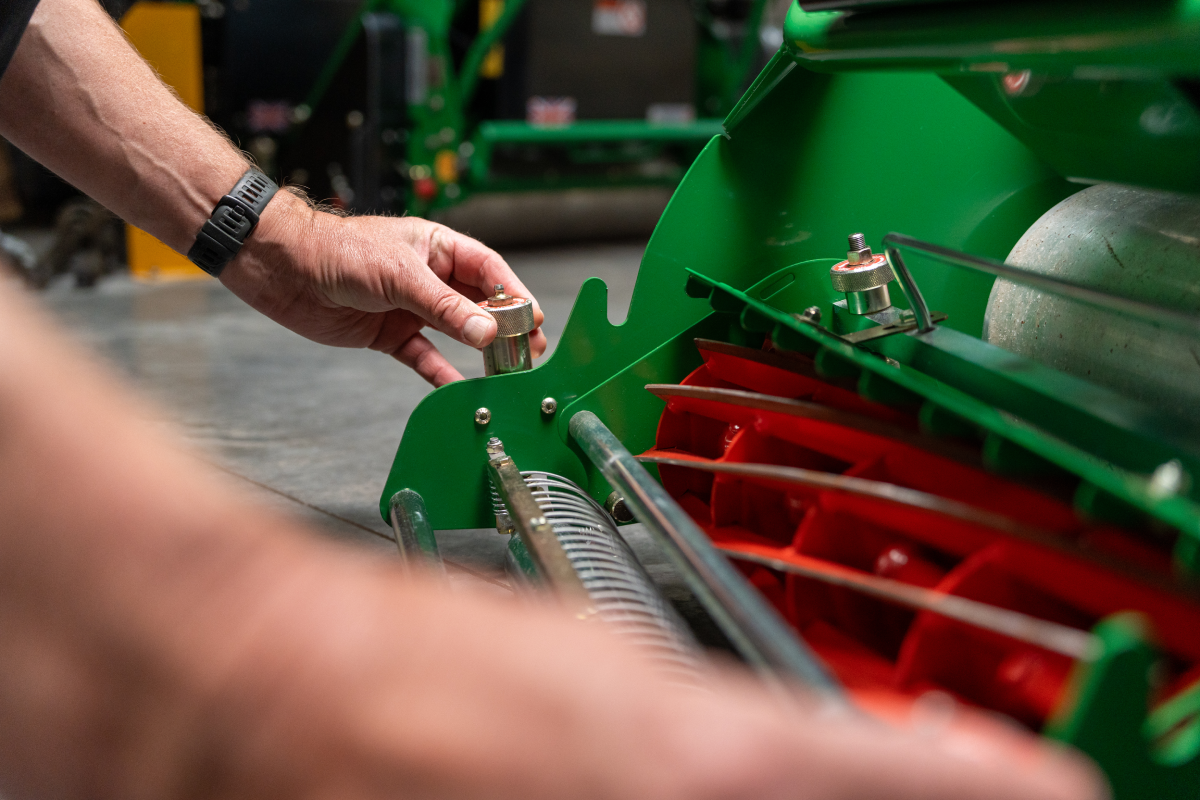

    High quality British steel blades. Choice of bottom blade and incorporate easy to set cutter adjustment.

    10 Bladed Cylinder

    10 bladed cylinder

    High quality British steel blades. Choice of bottom blade and incorporate easy to set cutter adjustment.

    1mm Scarifier 800 x 800

    1mm scarifier

    1mm thick replaceable, wear resistant blades. 12mm spacing for thatch removal throughout season and autumn/spring renovation work.

    2mm Scarifier 800 x800

    2mm scarifier

    2mm thick replaceable, wear resistant blades. 12mm spacing for thatch removal throughout season and autumn/spring renovation work.

    2mm scarifier tungsten tipped 800 x 800

    2mm scarifier tungsten tipped

    The ultimate scarifier with tungsten tipped blades for heavy duty thatch removal throughout season and autumn/spring renovation work.

    Brush 800 x 800

    Brush

    For moss and debris removal and use as a light scarifier for final pre cut preparation.

    Brush Multi Dense 800 x 800

    Brush – multi dense

    For moss and debris removal and use as a light scarifier for final pre cut preparation.

    Verti-Cutter

    Verti-cutter

    1mm thick, 10 fingered replaceable discs. Regular use controls thatch, lateral growth and the ingress of unwanted species such as annual meadow grass.

    Verti-Cutter Tungsten Tipped

    Verti-cutter tungsten tipped

    The ultimate verti-cutter with tungsten tipped blades for heavy duty usage.

    Sorrel Roller

    Sorrel roller

    Replaceable spikes relieves surface tension and allows penetration of air, water and fertiliser to the root zone.

    Slitter

    Slitter

    Helps relieve surface tension and prevents thatch.

    Spring Tine Rake

    Spring Tine Rake

    Ideal for lifting lateral growth, helping to stand grasses up, removing dead matter or broken leaves following a match. Also helps to break up algae crust or help remove the glutinous slime that can sometimes appear on fine turf.
