Designed to give a first class finish every time.

The Dennis G26D, G30D and G34D are professional pedestrian cylinder mowers designed for delivering a consistently high-quality finish across fine turf and sports surfaces. Built for groundsmen, greenkeepers and local authorities, this dedicated range is trusted worldwide for its precision cutting performance, durability, and ease of operation.

With cutting widths of 26” (660 mm), 30” (760 mm) and 34” (860 mm), the range provides flexibility for different pitch sizes and turf management requirements while maintaining a uniform, striped finish across all models.

The G-Series cylinder mowers are engineered specifically for demanding environments where presentation and consistency are critical. Whether maintaining a professional stadium pitch or a high-quality private lawn, the G26D, G30D and G34D deliver dependable results in both short and longer grass conditions.

Enquire

  • Large diameter cutting cylinder for maximum performance with both short and longer length grass
  • Cast 3 section aluminium ribbed roller for positive traction in all conditions and mark free turning
  • Low vibration handle bars

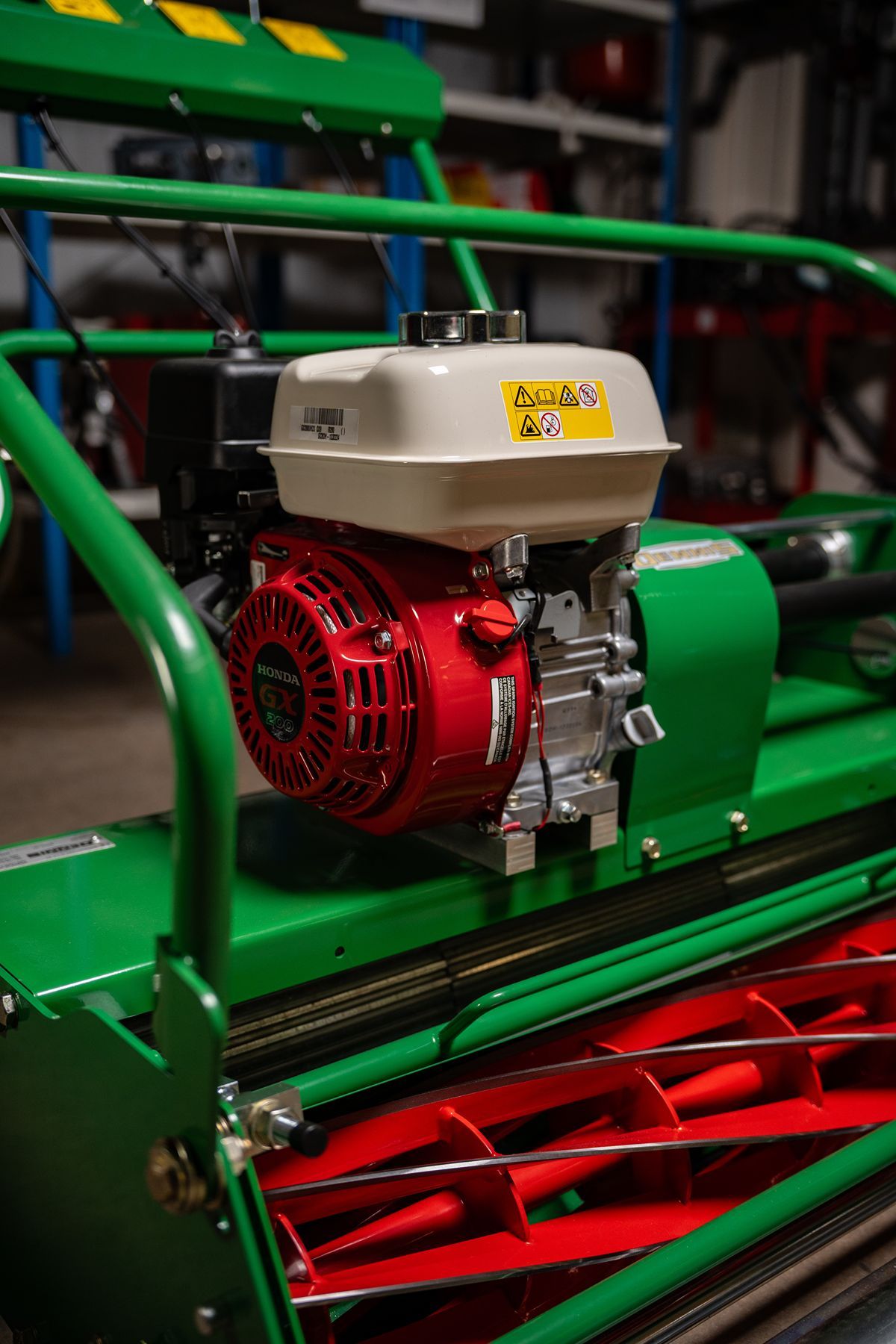

  • Honda power - ultimate easy start long life engine with Q9 low noise low vibration technology
  • Open construction means superior sight lines for accurate line up of mower

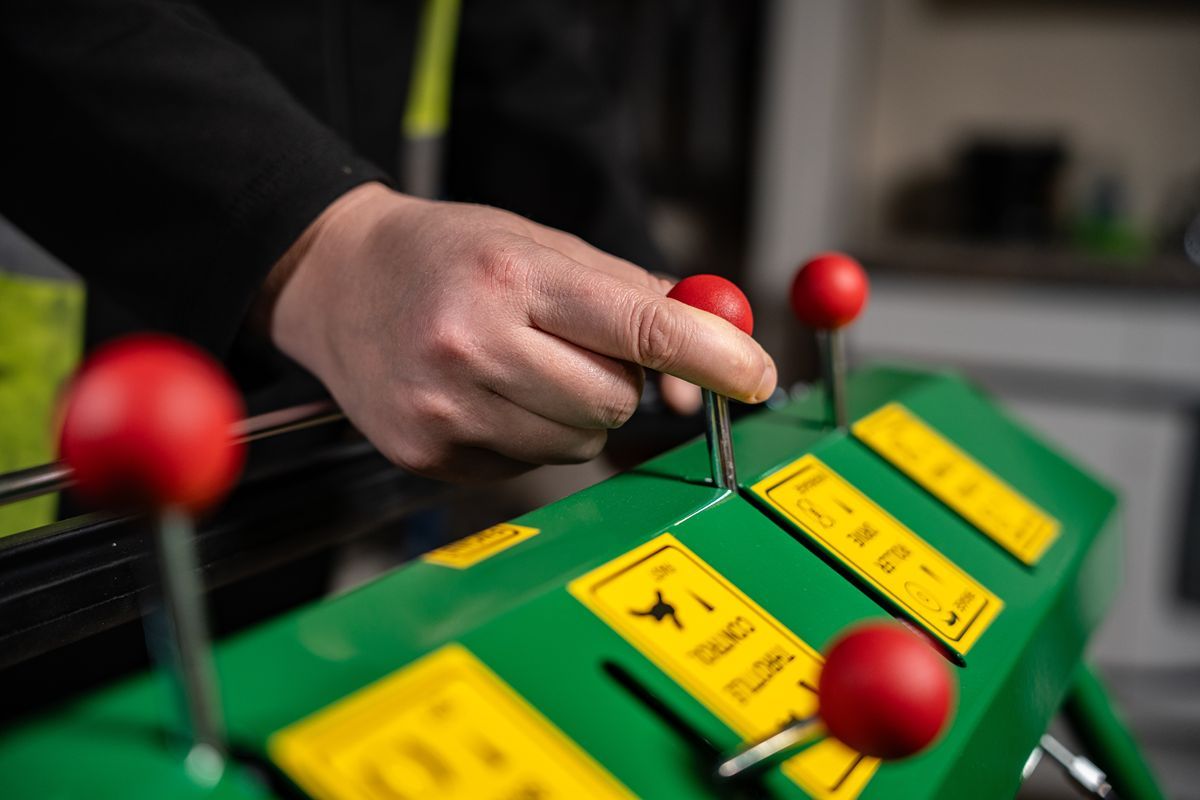

  • Easy and comfortable to operate controls incorporating parking brake and all the latest safety features
  • G26D G30D G34D - Precise height of cut control which is easily adjusted on both sides with a single spanner

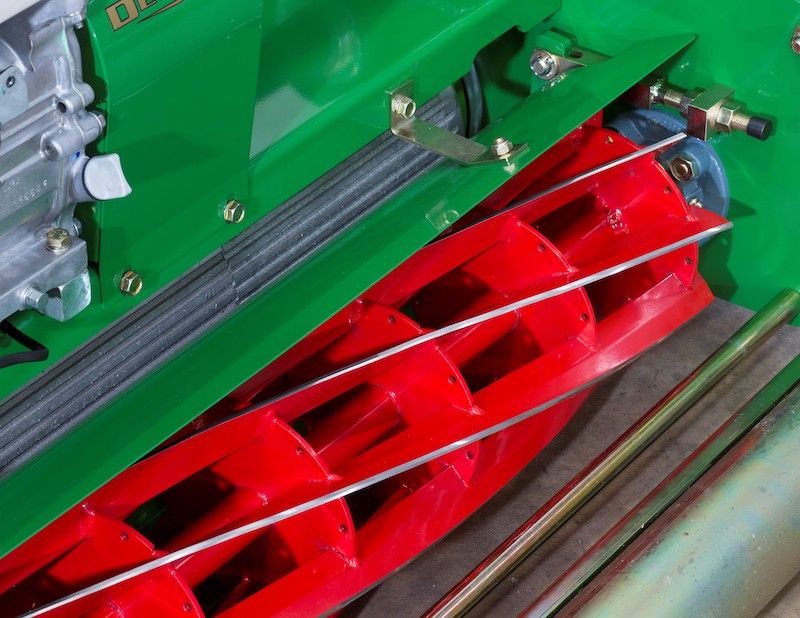

  • G26D G30D G34D - Large diameter cutting cylinder for maximum performance

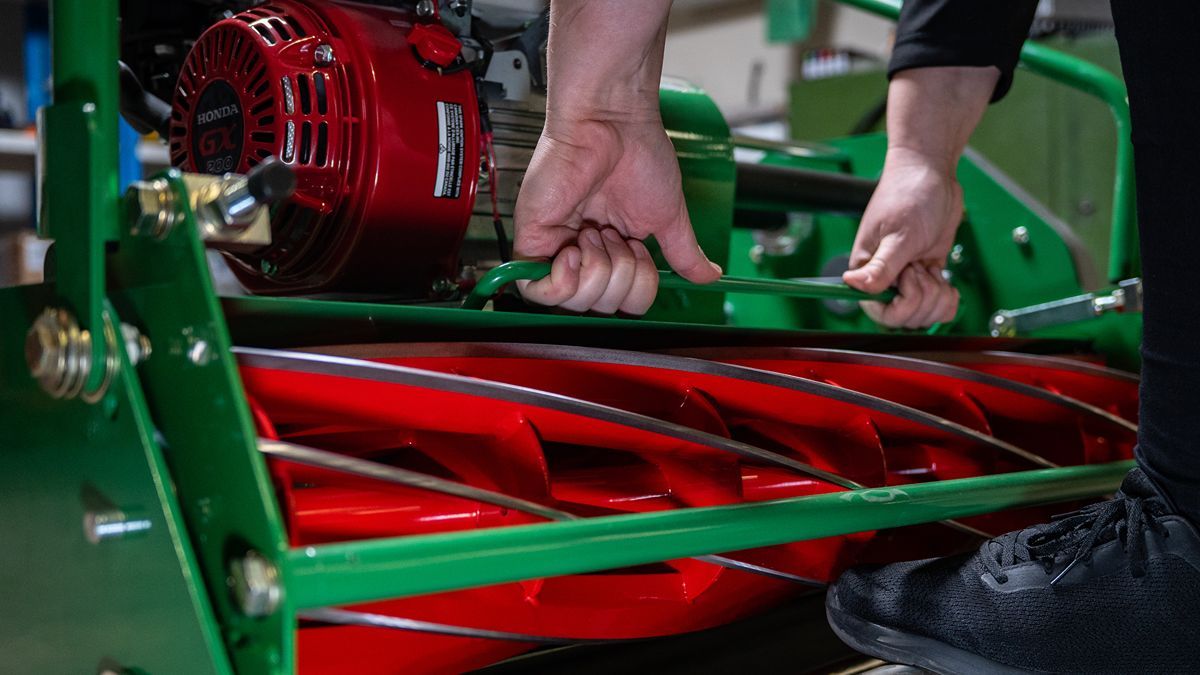

  • G26D G30D G34D - Adjustment of cylinder to bottom blade with a single spanner Bottom Blade adjustment

Specification

G26D, G30D & G34D

  • Specification660 / G26D760 / G30D860 / G34D
    Cutting width

    660 mm / 26 inches

    760 mm / 30 inches

    Cutting Width

    860 mm / 34 inches

    Height of cut

    14 mm - 47 mm

    14 mm - 47 mm

    14 mm - 47 mm

    Number of blades

    8 blades

    8 blades

    8 blades

    Grassbox volume

    160 L

    180 L

    200 L

    Cylinder diameter

    190 mm

    190 mm

    190 mm

    Rear roller diameter

    228 mm

    228 mm

    228 mm

    Front roller diameter

    89 mm

    89 mm

    89 mm

    Width

    870 mm

    970 mm

    1070 mm

    Height

    1045 mm

    1045 mm

    1045 mm

    Length

    1305 mm

    1305 mm

    1305 mm

    Weight
    • Machine 163 kg
    • Machine 178 kg
    • Machine 200 kg
    • Grassbox 9.4 kg
    Speed

    Forward 3.21 km/h

    Forward 3.21 km/h

    Forward 3.21 km/h

    Drive system / power / engine
    • 'V' belt drive system
    • 3.6 kW ( 4.8 HP )
    • HONDA GX160 petrol engine
    • 'V' belt drive system
    • 3.6 kW ( 4.8 HP )
    • HONDA GX160 petrol engine
    • 'V' belt drive system
    • 3.6 kW ( 4.8 HP )
    • HONDA GX160 petrol engine
  • G26D G30D G34D - Hi Comfort fully adjustable trailer seat

    Hi comfort fully adjustable trailer seat

    Suspension trailer seat D025/S
    Self steer suspension seat D025/SRG

  • Article - Dennis-G34D-picture-perfect-at-Durham-CCC

    Dennis G34D picture perfect at Durham CCC

    The Dennis G34D cylinder mower is helping to provide a fantastic finish on the pitch at the Emirates Riverside Stadium according to Durham CCC head groundsman Vic Demain.
