Superbly balanced, easy to manoeuvre, fine turf mower.

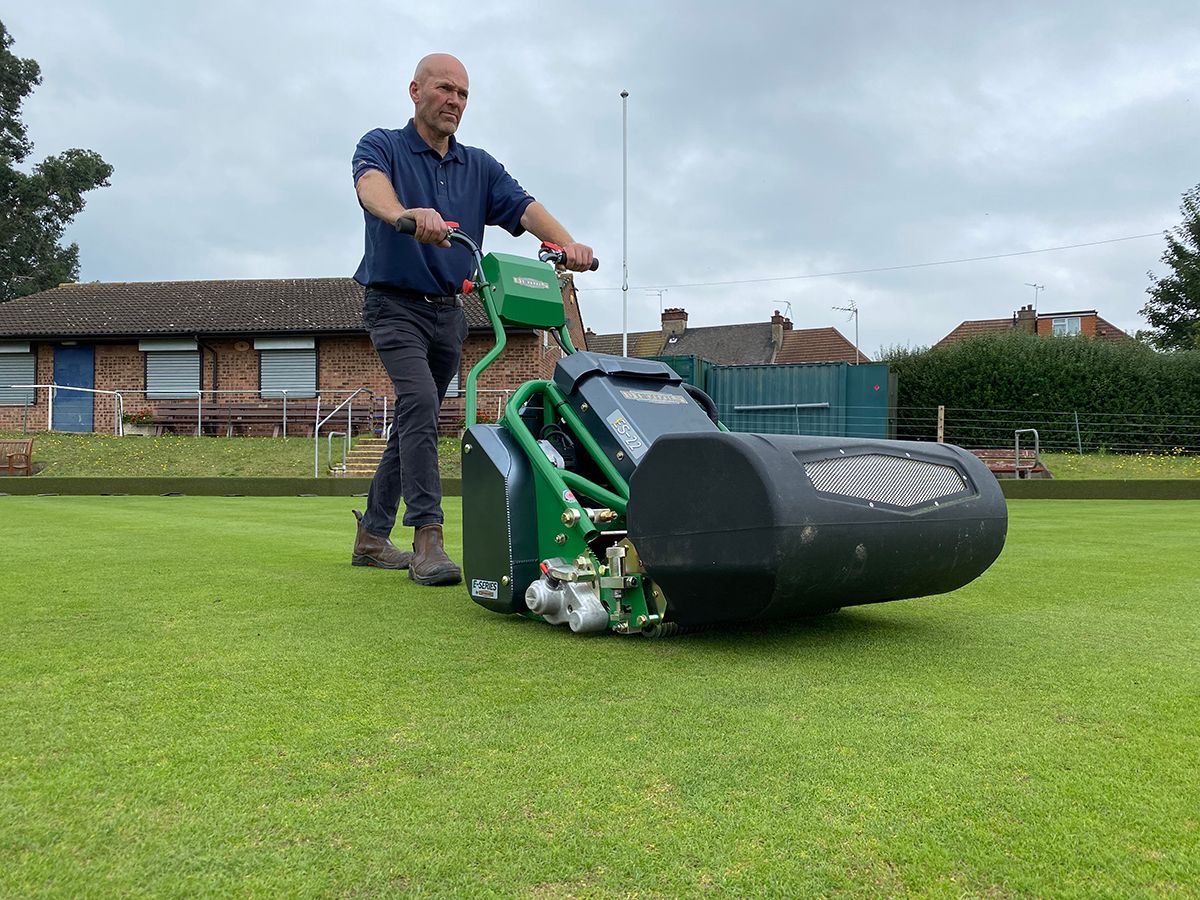

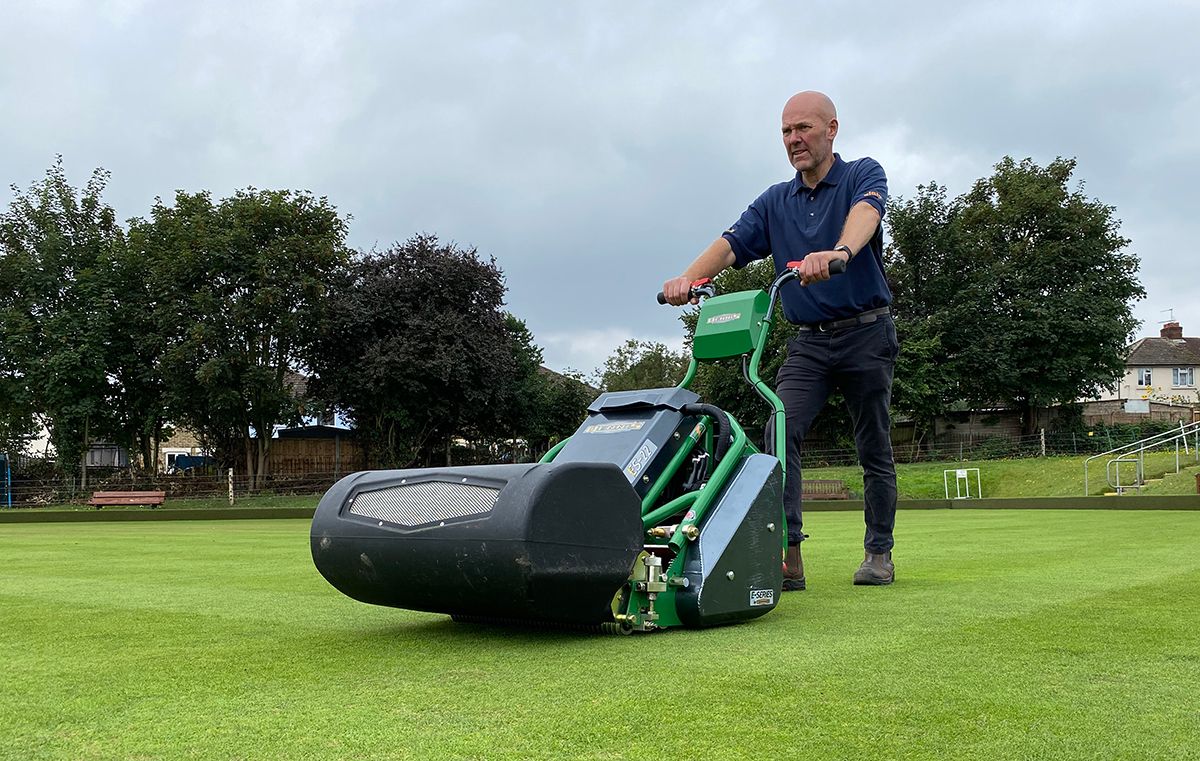

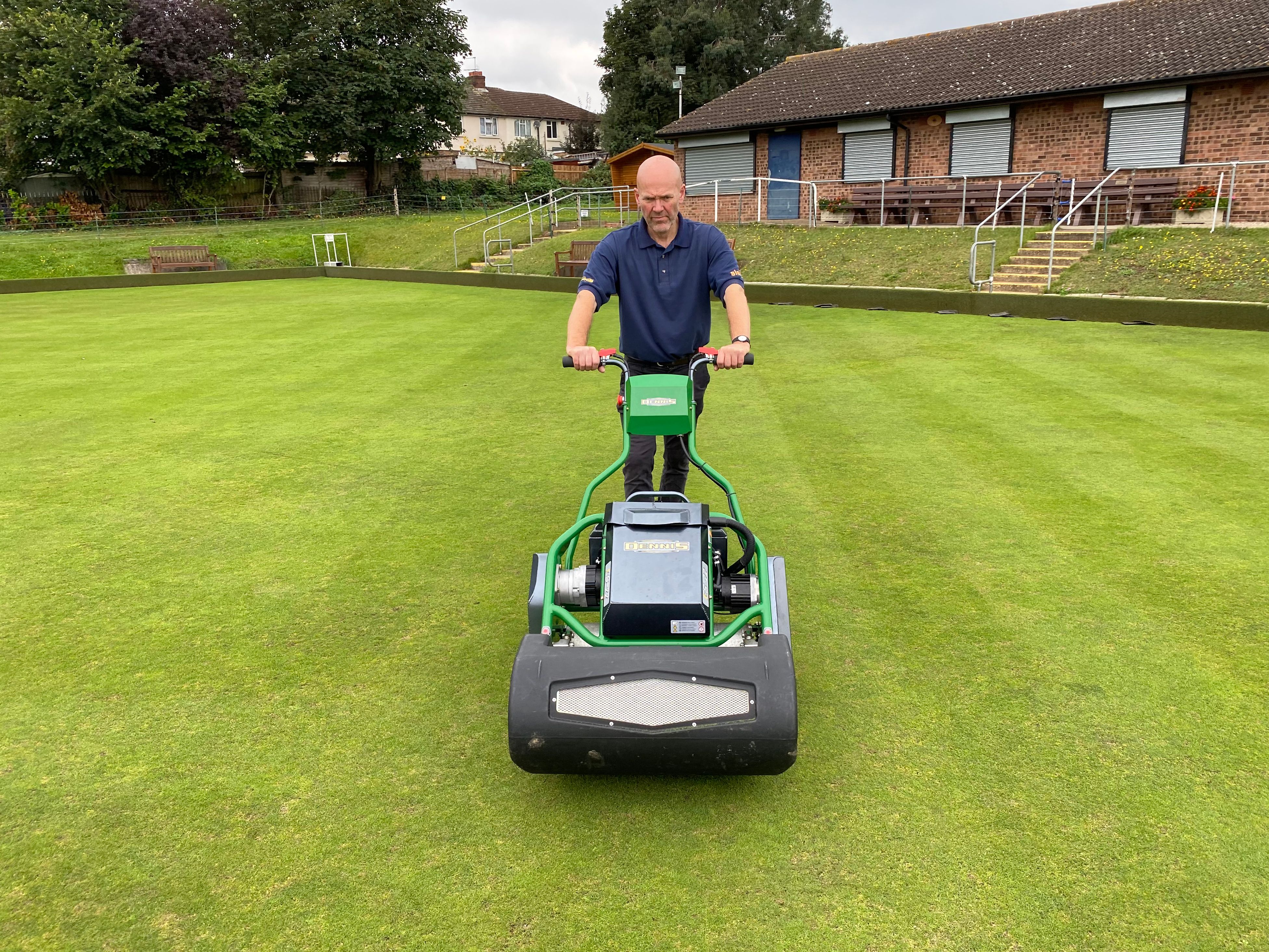

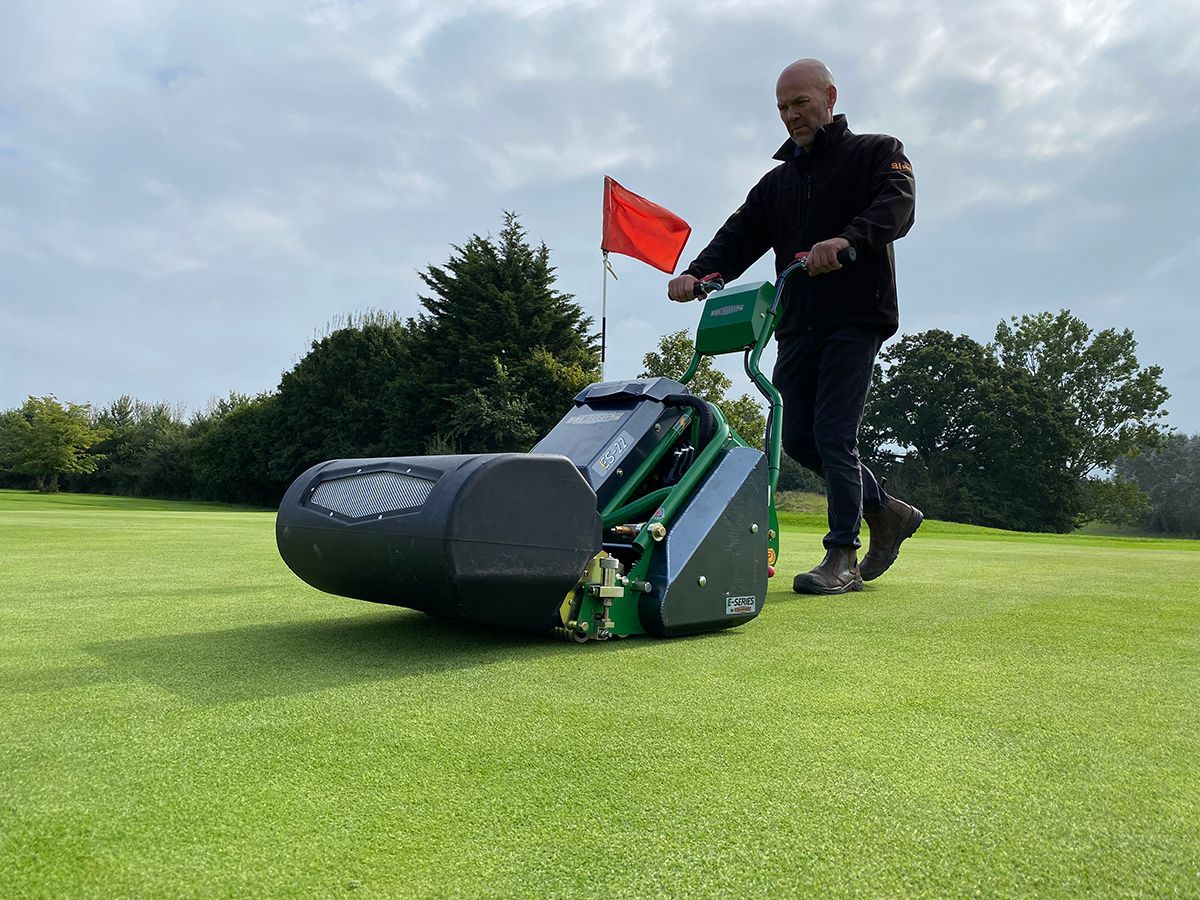

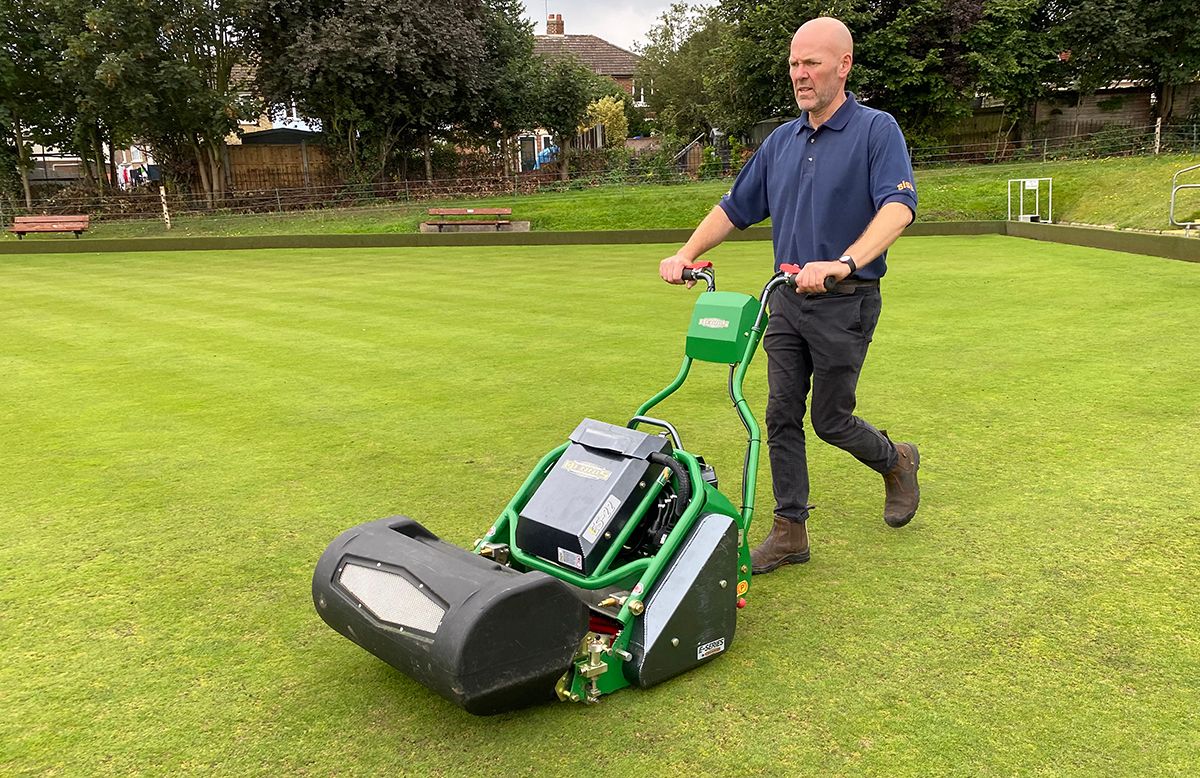

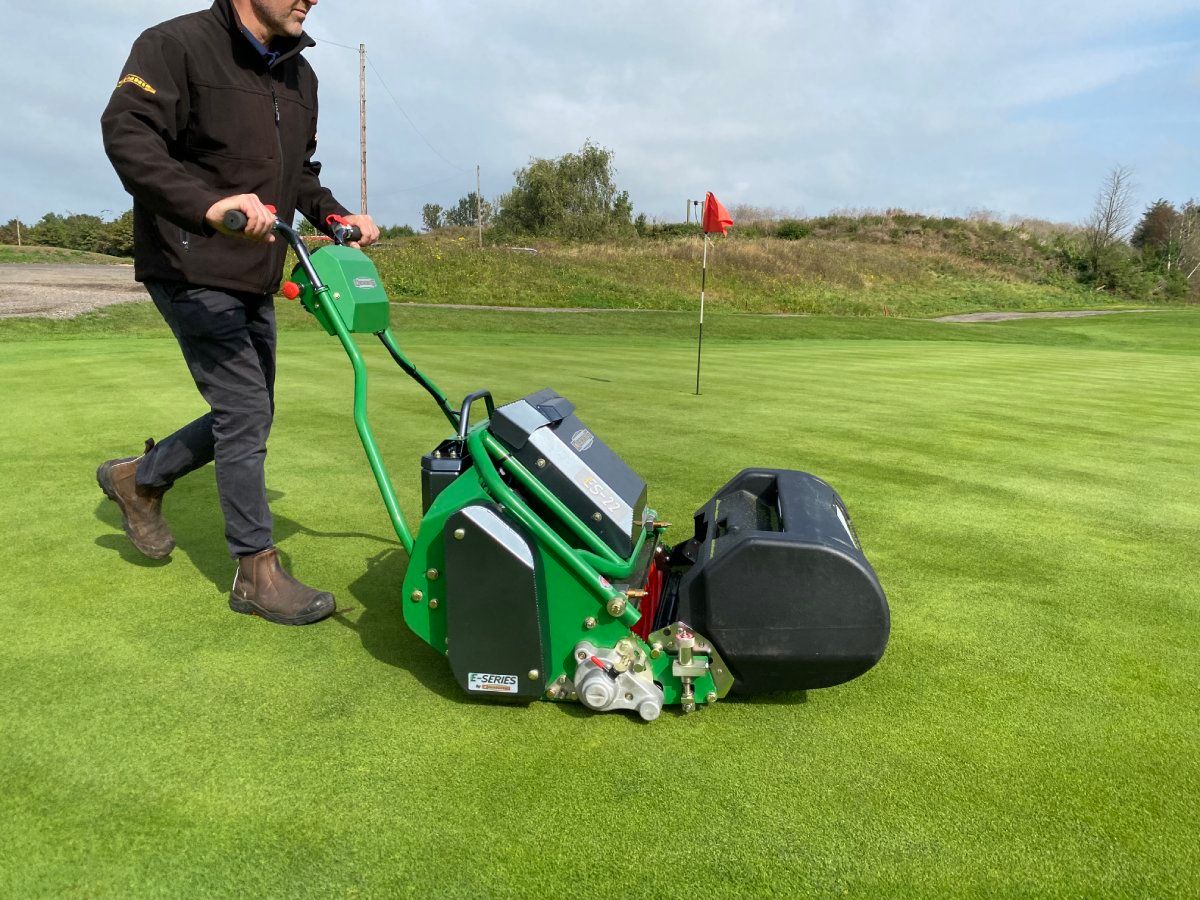

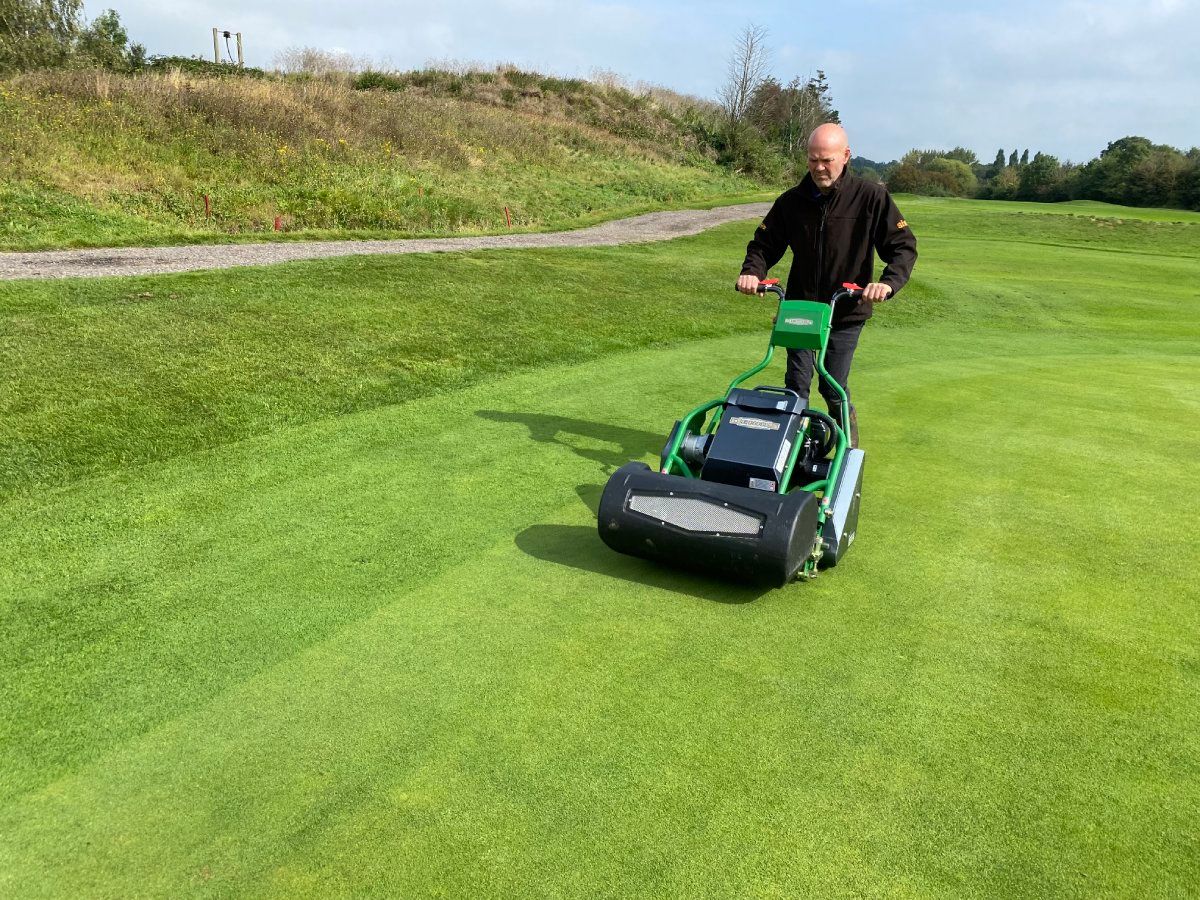

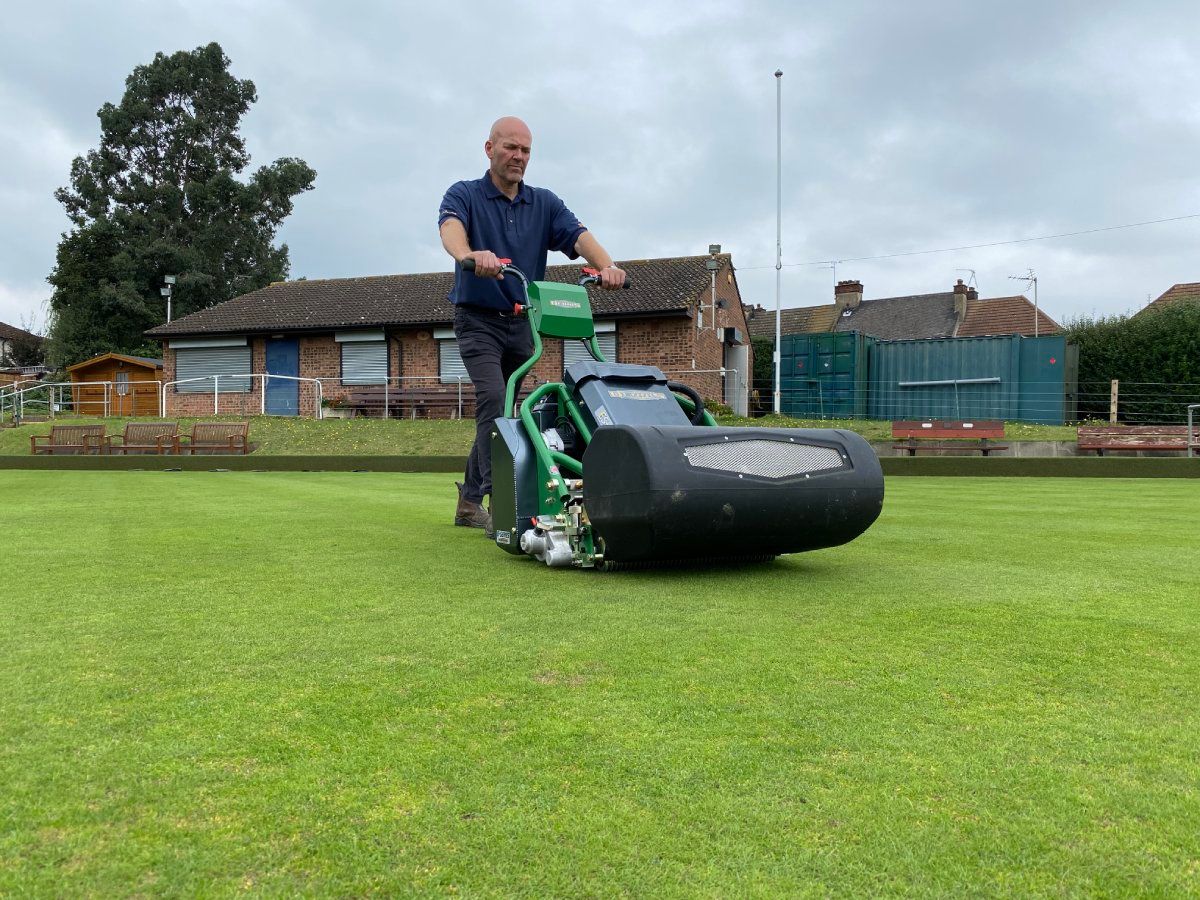

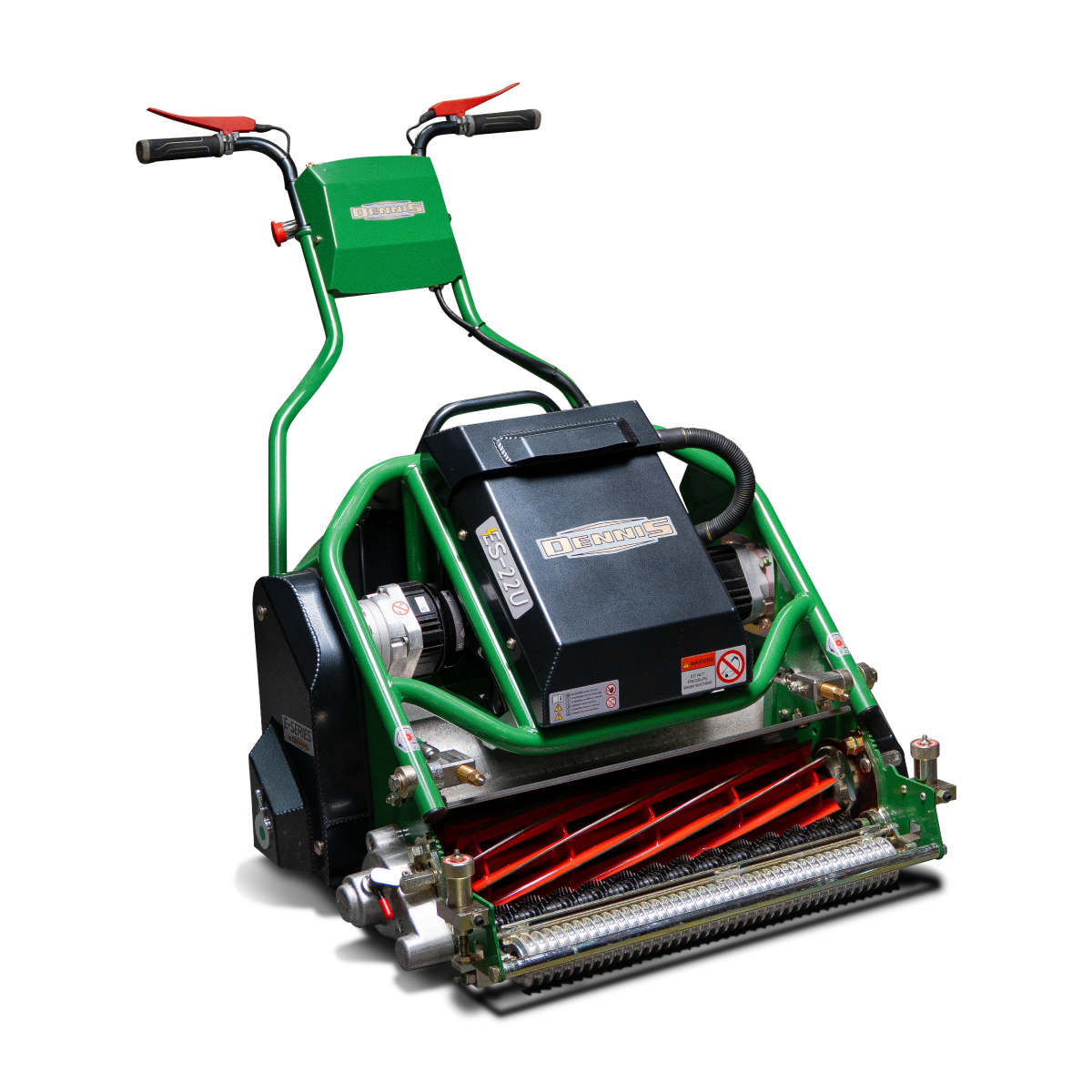

The Dennis ES-22 and the ES-22 Ultra are professional electric battery-powered cylinder mowers designed for precision turf maintenance on fine sports surfaces.
As part of the Dennis E-Series range, these machines provide a consistent high quality of cut and finish, ideal for use on bowls greens, golf greens, cricket squares, croquet lawns and other specialist turf surfaces.
The ES-22 and ES-22 Ultra are reliable ultra quiet battery mowers with low vibration that provide consistent cutting performance. Wasy to use with superb balance and control, variable speeds and clip rates and easy pull back for accurate alignment of next run, these mowers are ideal for meeting the turf standards required by sports and groundcare professionals.
- Ultra short wheelbase for undulating surfaces
- Simple ‘without tools’ click height adjustment in 0.25mm increments
- Ultra slow take up speed for smooth set off
- Back lapping as standard
- 1.5KWh battery
- Low maintenance, very low lifetime costs
- Huge cost savings on fuel
- Rapid 2-3 hour recharge
- Easy to remove battery pack with quick release lever
- Simple adjustment of bottom blade to cylinder
- Ultra low HAV’s and noise allows for full day usage in any environment
- Capable of cutting in excess of 10km on a single charge, or approx. 4-5 bowling greens
- Choice of two handlebar styles for operator comfort
- Maintained clips per metre at any forward speed - self adjusting cylinder RPM
Specification
ES-22 & ES-22 Ultra
Specification ES-22 ES-22 Ultra Height of cut 3 mm – 15 mm
3 mm – 15 mm
Number of blades 11
11
Cylinder diameter 140 mm
140 mm
Cutting width 560 mm / 22 inches
560 mm / 22 inches
Grassbox volume 75 L
75 L
Front roller diameter 63.5 mm
63.5 mm
Rear roller diameter 203 mm
203 mm
Speed range - Forward 2.0 - 8.5 km/h
- Reverse 1.5 km/h
- Forward 2.0 - 8.5 km/h
- Reverse 1.5 km/h
Width 810 mm
810 mm
Height 1020 mm
1020 mm
Length 935 mm
935 mm
Weight - Machine only 132 kg
- Grassbox only 3.8 kg
- Machine only 132 kg
- Grassbox only 3.8 kg
Drive system 5' V Belt
5' V Belt
Power source/output - 48V battery system
- 1.5 kW (cylinder) & 630 W (rear roller)
- 48V battery system
- 1.5 kW (cylinder) & 630 W (rear roller)
Recharge 2 - 3 hours
2 - 3 hours
Runtime on a single charge 4 - 5 Bowling Greens / 10km
4 - 5 Bowling Greens / 10km
Tungsten tipped groomer No
Yes - The ES-22 Ultra has a tungsten-tipped groomer reel can be engaged or disengaged depending on turf conditions for lifting lateral growth ahead of cutting.
Powered transport wheels
Smooth front roller
Scraper bar kit
Charger 650 Watt
650 Watt Charger
This will charge the machine to full in 2 hours.
In detail:
Code: D172
Output: 140
Voltage: 115-230
Frequency: 50-60
Dimensions: 520 mm width | 1120 mm length | 1070 mm heightChargers are not supplied with the mower and must be added as an option. Can also be supplied as a spare.

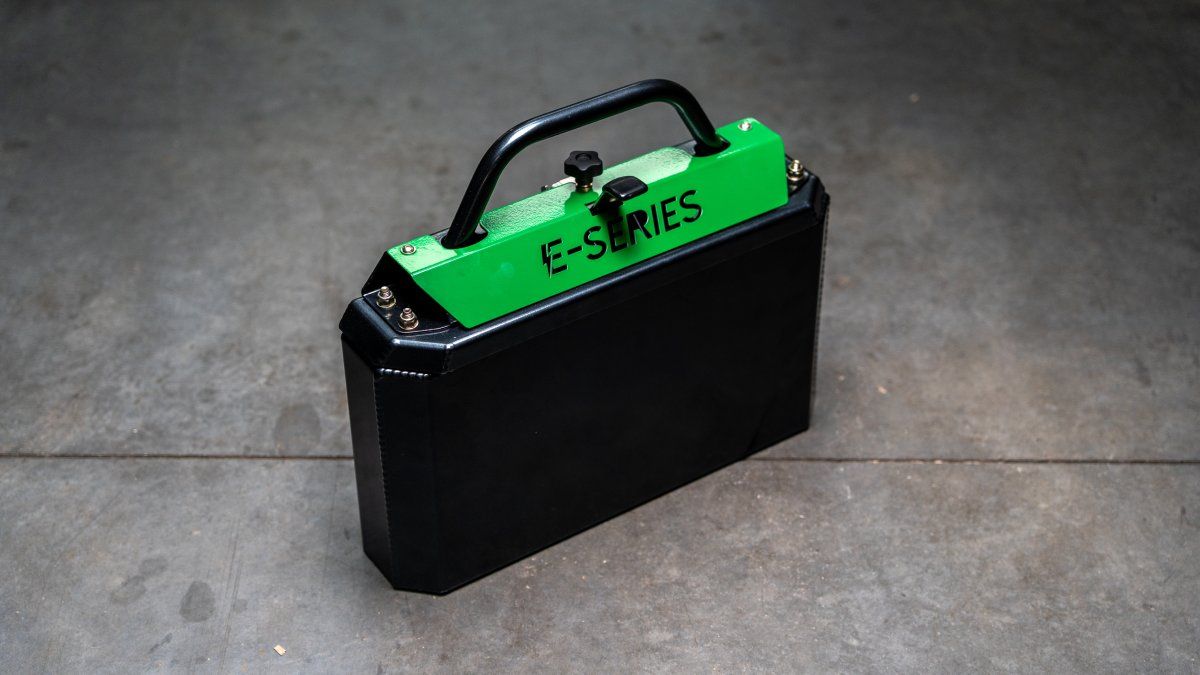

Additional battery pack
Code: D163
Dennis Mowers to Showcase Game-Changing Technology at BTME 2025
View ArticleDennis Mowers, part of the Howardson Group, will be at BTME 2025 in Harrogate this January, exhibiting their innovative range of turf maintenance machinery.
Dennis to Exhibit E-Series at GroundsFest 2024
View ArticleDennis is set to make a significant impact at GroundsFest 2024, showcasing an impressive range of battery-powered products on stand 50 in Hall 2 at Stoneleigh Park, Warwickshire, on September 10 and 11.
Electrifying Dennis E-Series at GroundsFest
View ArticleDennis will be showcasing a wide-range of pedestrian battery-powered products on stand 50 in hall 2 at GroundsFest 2023.
Dennis and SISIS Launch New E-Series Products at SALTEX 2021
View ArticleBritish manufacturers Dennis and SISIS have chosen SALTEX 2021, to be held at the NEC Birmingham on 3 and 4 November, to showcase the E-Series - a new range of battery-powered turf maintenance equipment.
Operator friendly and easy to control
The ES-22 and ES-22 Ultra are ultra quiet battery powered cylinder mowers with a 560mm (22”) cutting width. With its 11 bladed cylinder and ‘no tools’ required height of cut control, an ultra fine finish for that desired playing surface can be achieved.
Ideal for: Bowls, Croquet, Tennis | Cricket | Golf | Amenity
FAQ
- Which sports and applications is it suitable for?
Ideal for bowls, croquet, tennis, cricket, golf, and fine turf maintenance for local authorities.
- What is the cutting width of the ES-22?
The cutting widths; ES-22 = 22'' (560mm)
- What is the battery specification?
48 V, 1.5 kWh lithium-ion battery pack designed for extended runtime.
- What is the typical range on a single charge?
The ES-22 is capable of cutting in excess of 10 km of turf, or approximately 4–5 bowling greens, per charge under normal operating conditions.
- How long is the recharge time from empty to full?
Approximately 2–3 hours using the supplied high-efficiency charger.
- What is the height of cut range?
3 mm - 15 mm
- What cylinder cassettes are available?
11-blade cylinder
- How is the height of cut adjusted?
Tool-free click adjustment in 0.25 mm increments.
- Is back lapping integrated?
Yes – built-in back lapping function accessible via control panel input.
- Is it suitable for undulating surfaces?
Yes – ultra-short wheelbase provides improved manoeuvrability and contour following.
